(08-13) - PUMP, EQUIPMENT HYDRAULIC

Запчасти Case 570MXT (08-13) - PUMP, EQUIPMENT HYDRAULIC (08) - HYDRAULICS

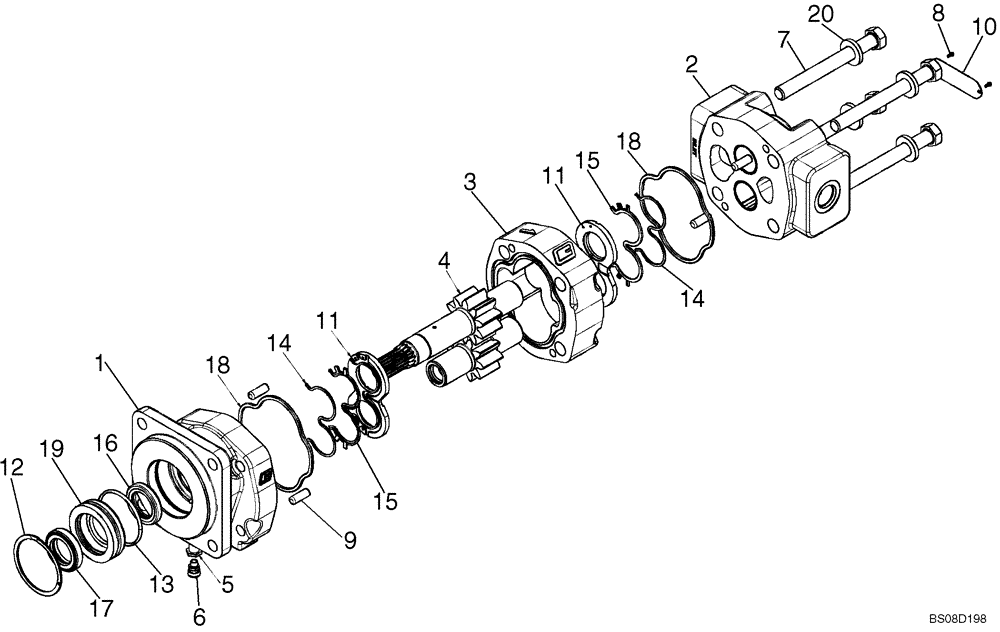

Схема запчастей Case 570MXT - (08-13) - PUMP, EQUIPMENT HYDRAULIC (08) - HYDRAULICS
6
20
12
15
7
14
11
3
2
14
19
8
9
16
15
18
17
4
1
11
18
5
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87677672

HYDRAULIC PUMP

Equipment; Models Without PTO; Incl. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Gear And Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Reducer

1шт.

6

NSS

NOT SOLD SEPARAT

Air Vent

1шт.

7

NSS

NOT SOLD SEPARAT

Cap Screw

4шт.

8

NSS

NOT SOLD SEPARAT

Screw, Drive

2шт.

9

NSS

NOT SOLD SEPARAT

Pin, Dowel

4шт.

10

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

87484433

SERVICE KIT

Kit, Seal, Incl. 11 - 19

1шт.

11

87484436

THRUST PLATE

Plate, Thrust

2шт.

12

87484440

SNAP RING

Ring, Snap

1шт.

13

87484441

O-RING

SEALRING Seal, O-Ring

1шт.

14

87484437

SEALING RING

SEALRING Seal, Backup

2шт.

15

87484438

SEALING RING

SEALRING Seal, Chain Ring

2шт.

16

87484434

SEALING RING

SEALRING Seal, Ring, Lip

1шт.

17

87484439

SEALING RING

SEALRING Seal, Ring, Lip

1шт.

18

87484435

SEALING RING

SEALRING Seal, Ring, Square

2шт.

19

87484442

SEAL RETAINER

Retainer, Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

4шт.
