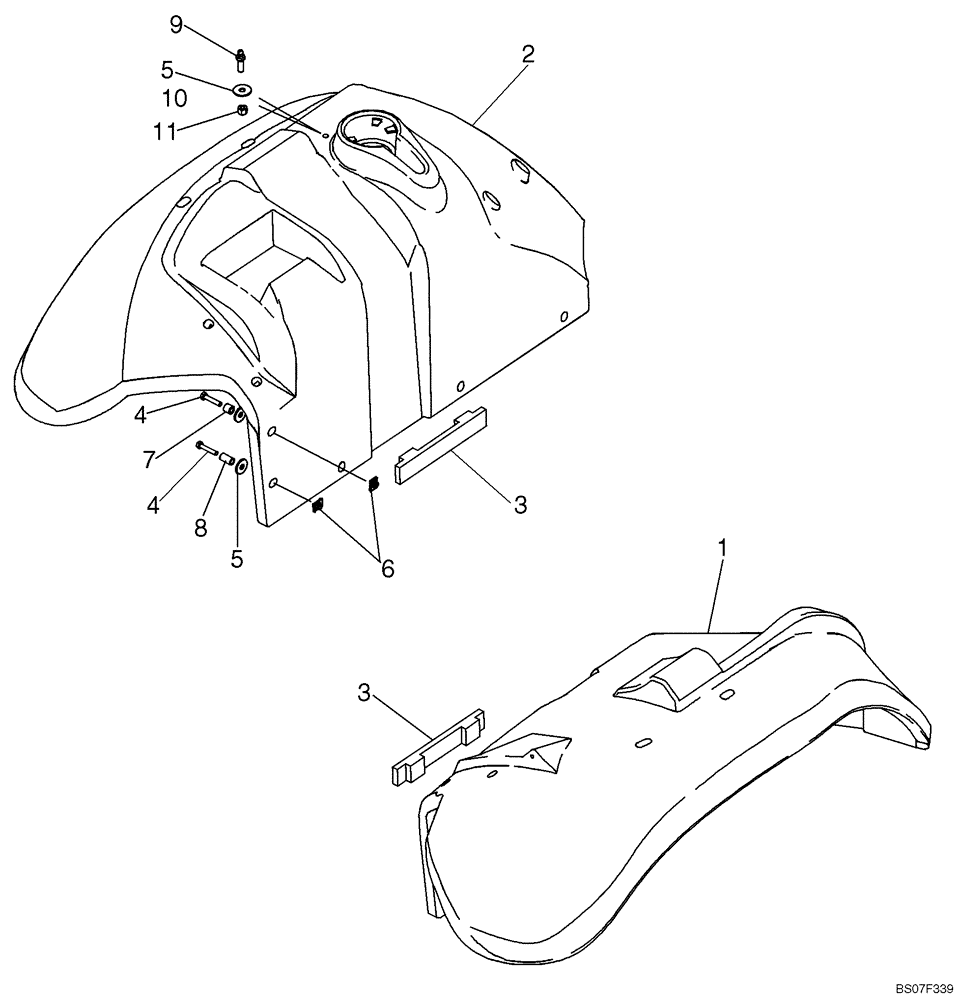

Запчасти Case 570MXT (09-29) - FENDER, REAR (CAB MODELS) (09) - CHASSIS/ATTACHMENTS

1

87573626

FENDER

RH

1шт.

2

87573630

FENDER

LH

1шт.

3

188482A1

SEALING STRIP

2шт.

4

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

18шт.

5

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

Flat, M10

18-20шт.

6

833-40408

NUT,M8, U

18шт.

7

87593433

SPACER,12.6mm ID x 16mm OD x 14mm Thk

14mm long Spacer

4шт.

8

87580819

SPACER

26 mm long Spacer

14шт.

9

139362A1

BALL JOINT

1шт.

10

495-81002

WASHER,3/8"

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
