(09-30) - PANEL, REAR CLOSURE (CAB MODELS)

Запчасти Case 570MXT (09-30) - PANEL, REAR CLOSURE (CAB MODELS) (09) - CHASSIS/ATTACHMENTS

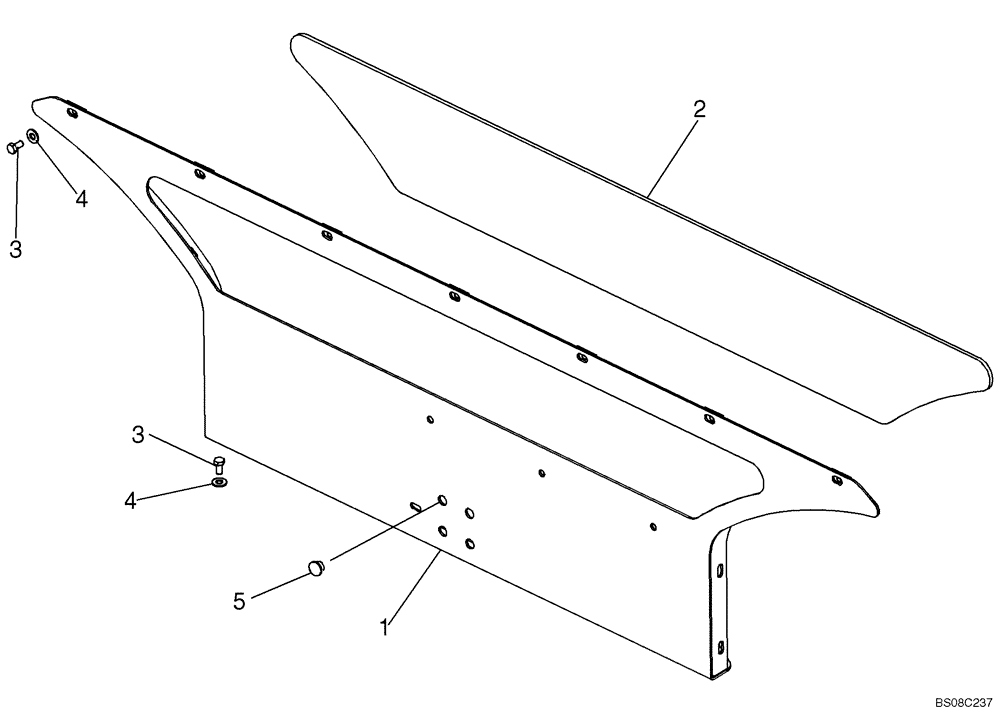

Схема запчастей Case 570MXT - (09-30) - PANEL, REAR CLOSURE (CAB MODELS) (09) - CHASSIS/ATTACHMENTS
3
5
3
4
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87609648

COVER ASSY

Rear Closure Panel; Three Point Hitch; Incl. Ref 2

1шт.

2

87609594

GLASS

1шт.

3

514-644

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

10шт.

4

86981722

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

5

353-436

PLUG,.593" Hole, Nylon

(2) Used With Three Point Hitch; (4) Used With 3000 lb Rear Counterweight

2-4шт.
