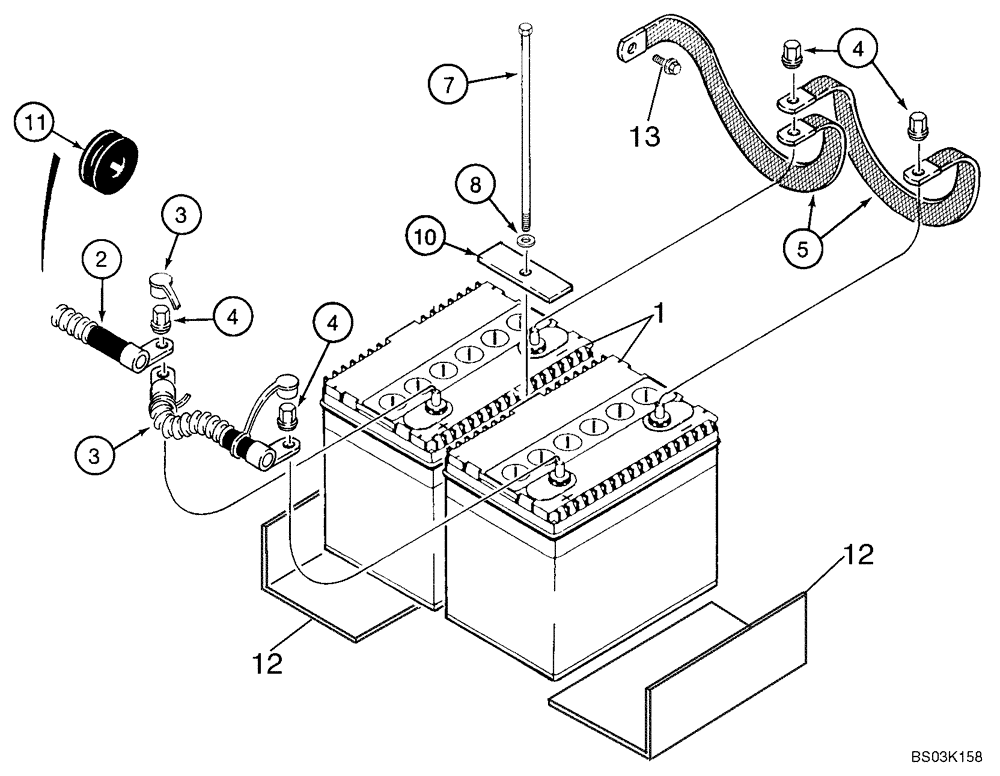

Запчасти Case 570MXT (04-06) - BATTERY, DUAL (04) - ELECTRICAL SYSTEMS

1

BMF28S

BATTERY, DRY

BATTERY DRY 12 V, Models With Cold Start; See Figure 09-22 For Battery Box

2шт.

2

87423675

ELECTRIC CABLE

1460 mm, Positive Cable; Chassis

1шт.

3

184497A1

CABLE

227 mm, Positive Jumper

1шт.

4

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

3/8

4шт.

5

87423676

NEG BATTERY CABLE

324 mm Flat Ground Strap

2шт.

7

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

10

250854A1

STRAP

1шт.

11

87423677

GROMMET

Battery Cable Grommet; Mounts In Chassis Side Channel

2шт.

12

408535A1

PLATE

255 mm (10-1/32 in); Battery Support

2шт.

13

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
