(05-02) - HYDRAULICS - STEERING

Запчасти Case 570MXT (05-02) - HYDRAULICS - STEERING (05) - STEERING

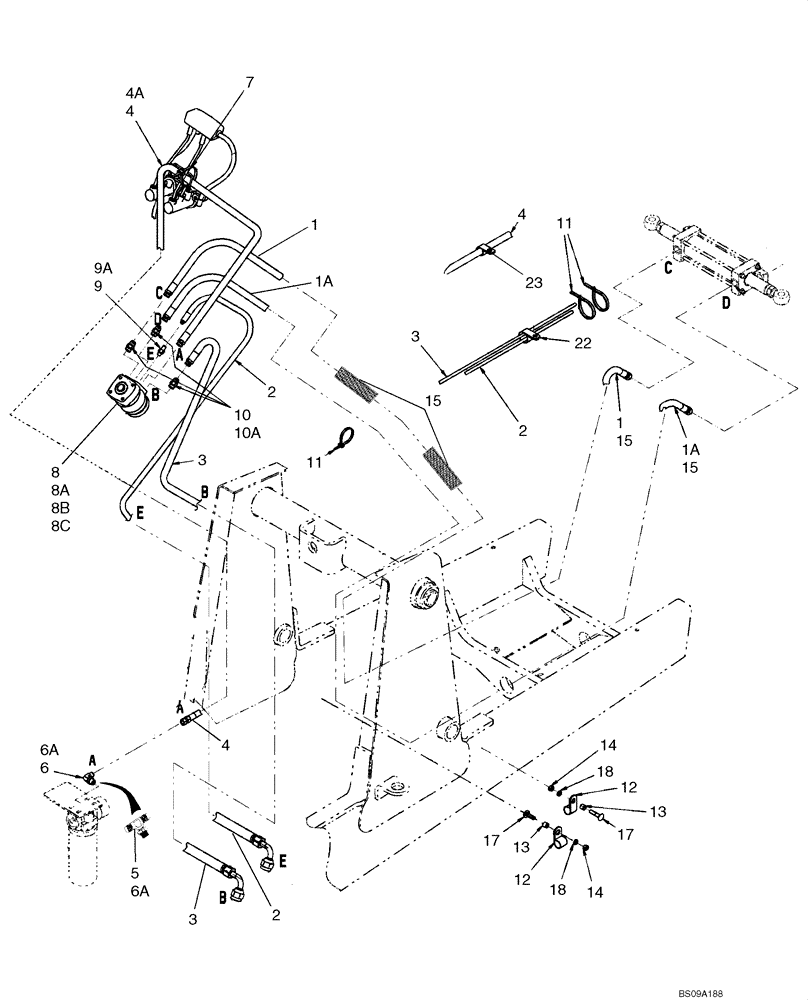

Схема запчастей Case 570MXT - (05-02) - HYDRAULICS - STEERING (05) - STEERING
12
2
2
9
23
14
4
8a
13
1
5
8a
12
10a
6
18
11
13
18
11
15
3
4a
8b
3
1a
2
6a
17
6a
3
10
4
15
9a
17
14
8c
15
1
7
22
1a
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84164350

HOSE ASSY.

Steering, 1750 mm (68 - 7/8 in); Replaces 84124131 Hose 1670 mm (65 - 3/4 in)

1шт.

1a

84124132

HOSE ASSY.,9.255mm ID x 1750mm L, SAE 100R16

Steering, Right-Hand; 1750 mm (68-7/8 in)

1шт.

2

87358221

HOSE ASSY.

Steering Pilot; Steering Pump to Loader Valve Load Sense Port; 1450 mm (57-5/64 in); See Figure 08-01, Ref 30 For Fitting At Load Sense Port

1шт.

3

87323356

HOSE ASSY.

Steering Pressure; Steering Pump to Loader Valve Priority Flow Port; 1300 mm (51-3/16 in)

1шт.

4

176328A1

HOSE

Return; Steering Pump to Filter; 1730 mm (68 - 7/64 in); Incl. Ref. 4A

1шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Incl. Ref. 6A; Models With Holding Valve; If Used

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref. 6A; If Used

1шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

8

377805A1

PUMP

Steering; Incl. Refs. 8A - 8C

1шт.

8

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 377805A1

1шт.

8

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

8a

396591A1

KIT

Seal

1шт.

8b

396592A1

KIT

Anticavitation Valve

1шт.

8c

396593A1

KIT

Bolt

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 9A

1шт.

9a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 10A

3шт.

10a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

13

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Hose Guard; 460 mm (18-1/8/in)

1-4шт.

17

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

22

49773

CLAMP

If Used

1шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.
