(39.140.AM[04]) - VAR - 747580 - FRONT COUNTERWEIGHT, 440 LBS

Запчасти Case 570N EP (39.140.AM[04]) - VAR - 747580 - FRONT COUNTERWEIGHT, 440 LBS (39) - FRAMES AND BALLASTING

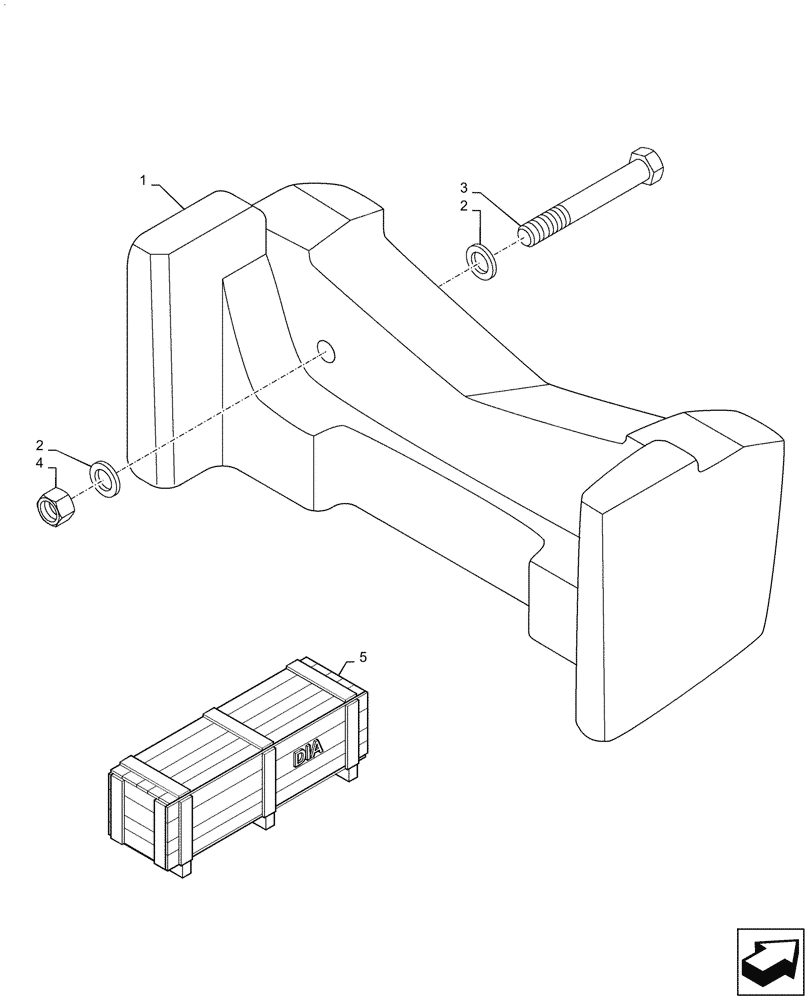

Схема запчастей Case 570N EP - (39.140.AM[04]) - VAR - 747580 - FRONT COUNTERWEIGHT, 440 LBS (39) - FRAMES AND BALLASTING
2
4
3
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48068829

COUNTERWEIGHT

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

3

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

4шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

48130640

DIA Kit, 440 LB Front Counterweight (Order from Wholegoods Only) Incl 1 - 4

CONSTRUCTION DIA

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.

Выбрано товаров: 6
