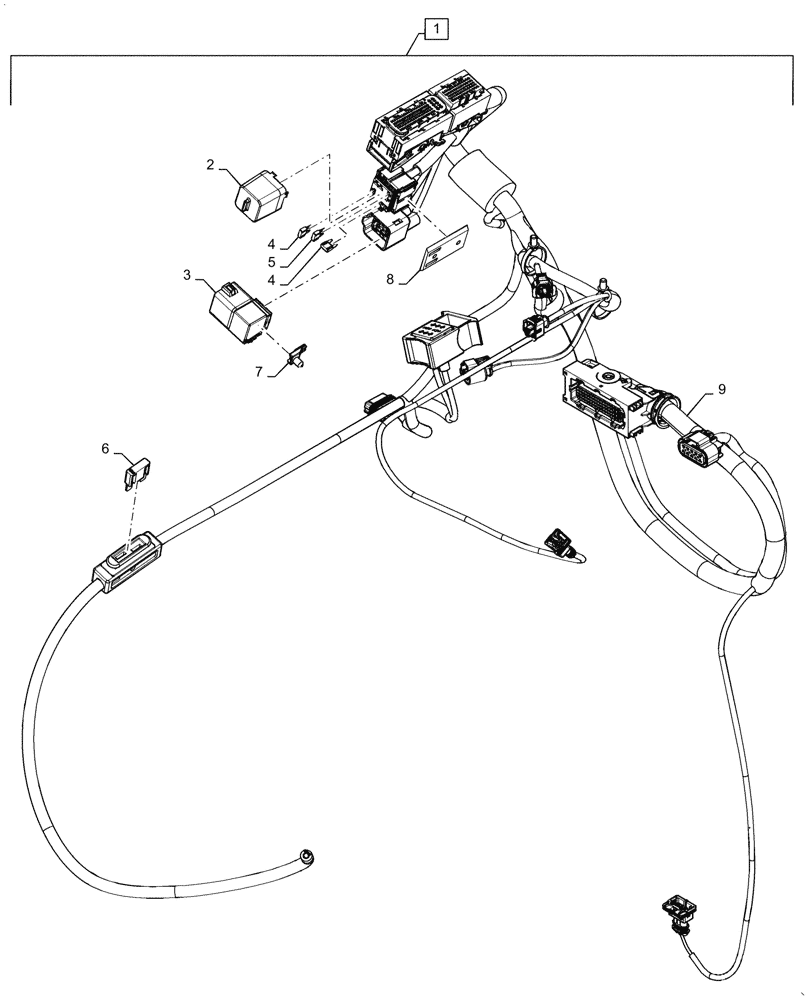

Запчасти Case 570N EP (55.015.AB[05]) - ENGINE WIRE HARNESS - ASN NHC739062 (55) - ELECTRICAL SYSTEMS

1

48037993

WIRE HARNESS

Assembly, Engine, W/ Braid, Incl 2 - 9, Start Serial: NHC739062

1шт.

1

48037993

WIRE HARNESS

Assembly, Engine, W/ Braid, Incl 2 - 9, Start Serial: NHC739514

1шт.

2

84386691

COVER

1шт.

3

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

2шт.

4

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

2шт.

5

121414A1

FUSE,20A, Mini, Yellow

(Used for Starter, Air Seat, ECU B+)

1шт.

6

84253577

FUSE,60A, Maxi, Blue

Maxival (Used for GCU Glow Plug)

1шт.

7

84386626

WIRE CONNECTOR

1шт.

8

84386689

CLIP

1шт.

9

48037992

WIRE HARNESS

Engine, W/ Braid, Start Serial: NHC739062

1шт.

9

48037992

WIRE HARNESS

Engine, W/ Braid, Start Serial: NHC739514

1шт.
