(55.100.DP[06]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, HARNESS

Запчасти Case 570N EP (55.100.DP[06]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, HARNESS (55) - ELECTRICAL SYSTEMS

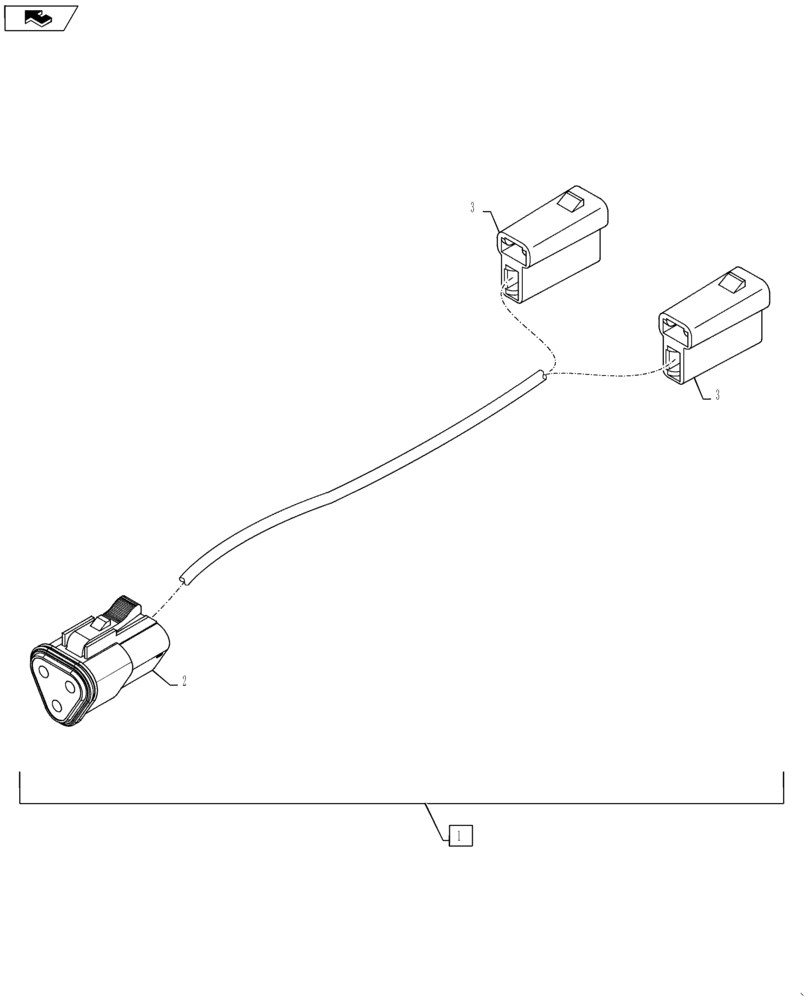

Схема запчастей Case 570N EP - (55.100.DP[06]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, HARNESS (55) - ELECTRICAL SYSTEMS
2
3
1
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84522731

JUMPER

Washer Pump, Incl 2 - 3

1шт.

2

84277203

ELEC CONNECTOR

To Side Harness, X-131

1шт.

3

87693325

ELEC CONNECTOR,Female, 2 Cavities

Rear Windshield Washer Pump, X-133

1шт.

3

87693325

ELEC CONNECTOR,Female, 2 Cavities

Front Windshield Washer Pump, X-134

1шт.

Выбрано товаров: 4
