(23.314.AH[01]) - FRONT AXLE, DRIVE SHAFT

Запчасти Case 570NXT (23.314.AH[01]) - FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

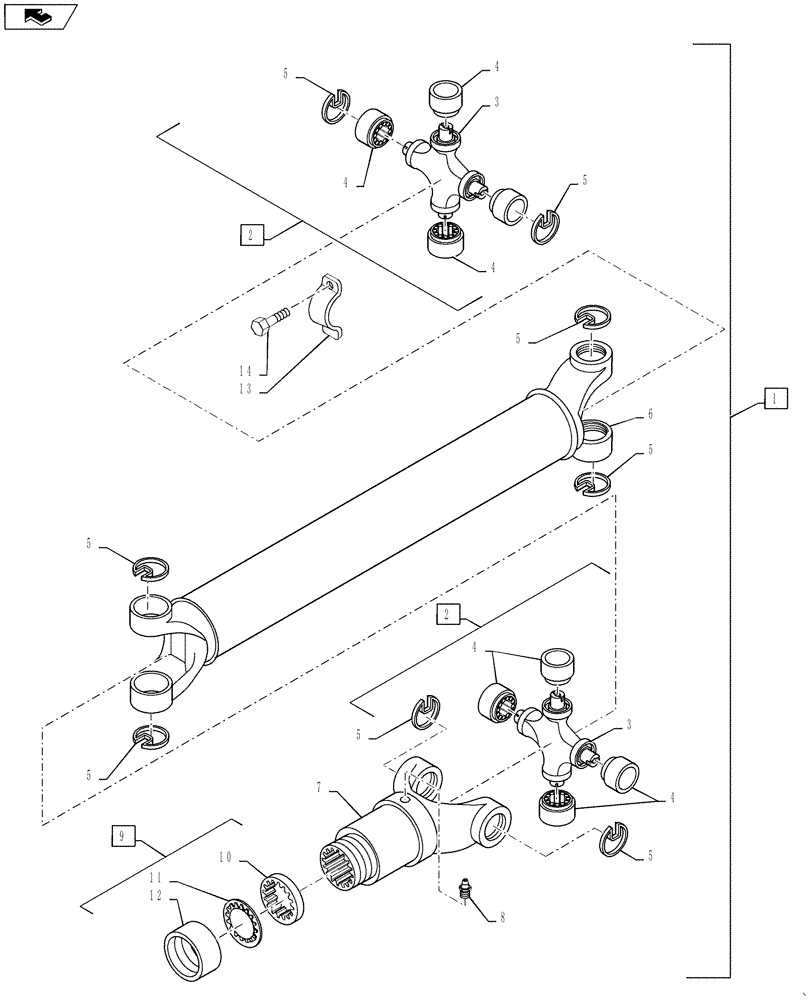

Схема запчастей Case 570NXT - (23.314.AH[01]) - FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
4
7
6
5
2
14
4
3
5
4
13
10
8
11
5
1
5
4
5
2
home
3
5
4
5
5
12
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87437988

DRIVE SHAFT

Incl 2 - 14

1шт.

2

86505534

BEARING ASSY

Universal Joint, Incl 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Universal Joint, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Journal Bearing, Incl in 2

4шт.

5

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 2

4шт.

6

393234A1

DRIVE SHAFT

Transmission

1шт.

7

144279A1

YOKE

Slip

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

D149860

SERVICE KIT

Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Cork Washer, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Steel Washer, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Cap, Incl in 9

1шт.

13

86014090

RETAINER

Clamp

2шт.

14

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.
