(35.100.BI) - LOADER, CYLINDER LIFT

Запчасти Case 570NXT (35.100.BI) - LOADER, CYLINDER LIFT (35) - HYDRAULIC SYSTEMS

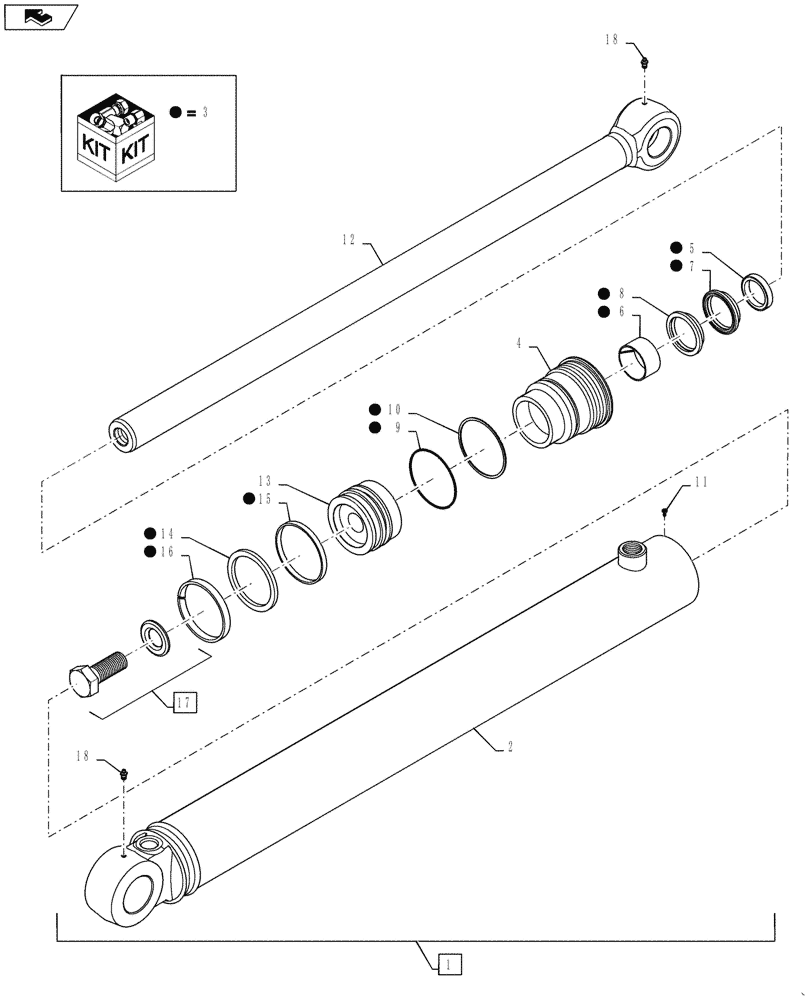

Схема запчастей Case 570NXT - (35.100.BI) - LOADER, CYLINDER LIFT (35) - HYDRAULIC SYSTEMS
12
6
5
3
1
16
3
9
2
3
3
13
3
3
3
18
17
15
3
4
7
11
3
3
3
10
18
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87384876

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

Loader Lift, 82.6 ID x 766 mm strk, Gray Incl 2 - 18

1шт.

1

87384876R

REMAN-HYD CYLINDER

Loader Lift, 82.6 ID x 766 mm strk, Gray Incl 2 - 18

1шт.

1

87384876C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Without Bushings Incl in 1

1шт.

3

86982375

SEAL KIT

Seal, Incl 5 - 10, 14 - 16

1шт.

4

1980321C3

GLAND

Packing

1шт.

5

NSS

NOT SOLD SEPARAT

Seal Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal Incl in 3

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal Incl in 3

1шт.

9

NSS

NOT SOLD SEPARAT

2-7/8 ID x 1/8 in O-Ring incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Ring incl in 3

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No. 8 x 3/8

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 in) dia Rod; Unpainted

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

Cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

Seal Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Ring Incl in 3

1шт.

16

NSS

NOT SOLD SEPARAT

Ring Incl in 3

1шт.

17

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 NF x 2-1/2; 8; No Longer Used, Order 86982437 Bolt With Washer

1шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.
