(82.300.AN[02]) - LOADER BUCKET (WELD ON CUTTING EDGE) 82 INCHES 1 YARD

Запчасти Case 570NXT (82.300.AN[02]) - LOADER BUCKET (WELD ON CUTTING EDGE) 82 INCHES 1 YARD (82) - FRONT LOADER & BUCKET

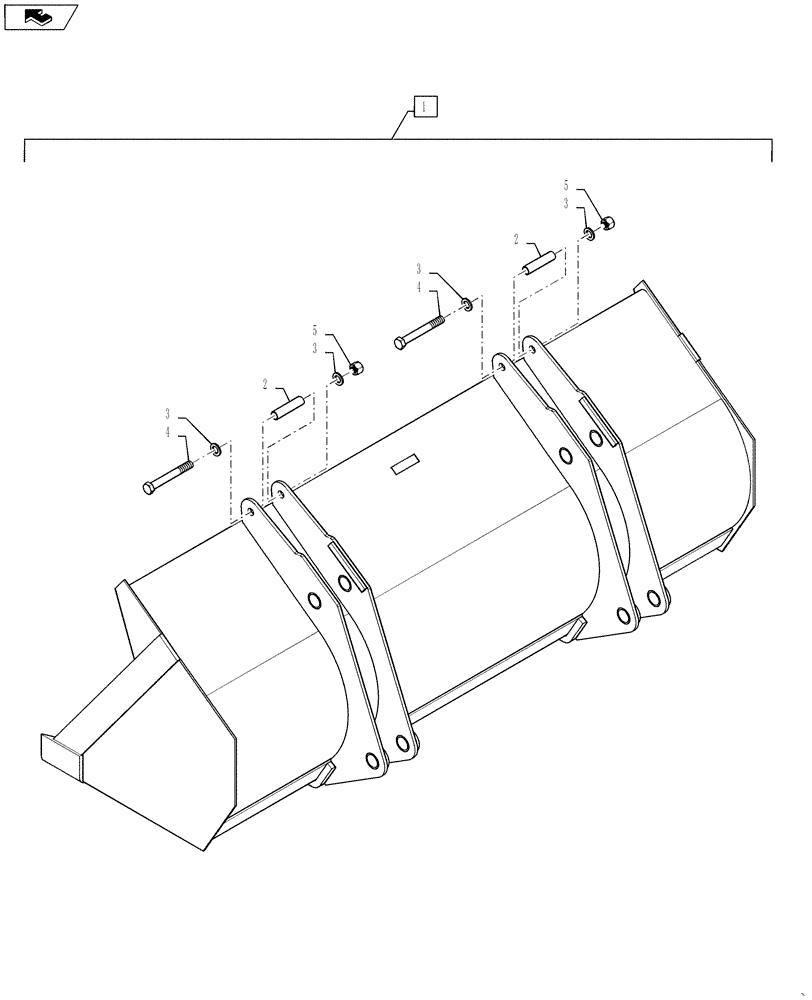

Схема запчастей Case 570NXT - (82.300.AN[02]) - LOADER BUCKET (WELD ON CUTTING EDGE) 82 INCHES 1 YARD (82) - FRONT LOADER & BUCKET
4
3
1
3
2
2
3
3
5
home
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84422709

BUCKET,82 Inch LL

82 Inch 1 Yard CNH CE Gray (Weld on Cutting Edge) Incl 2 - 5

1шт.

2

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

Chain Hook

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

Выбрано товаров: 5
