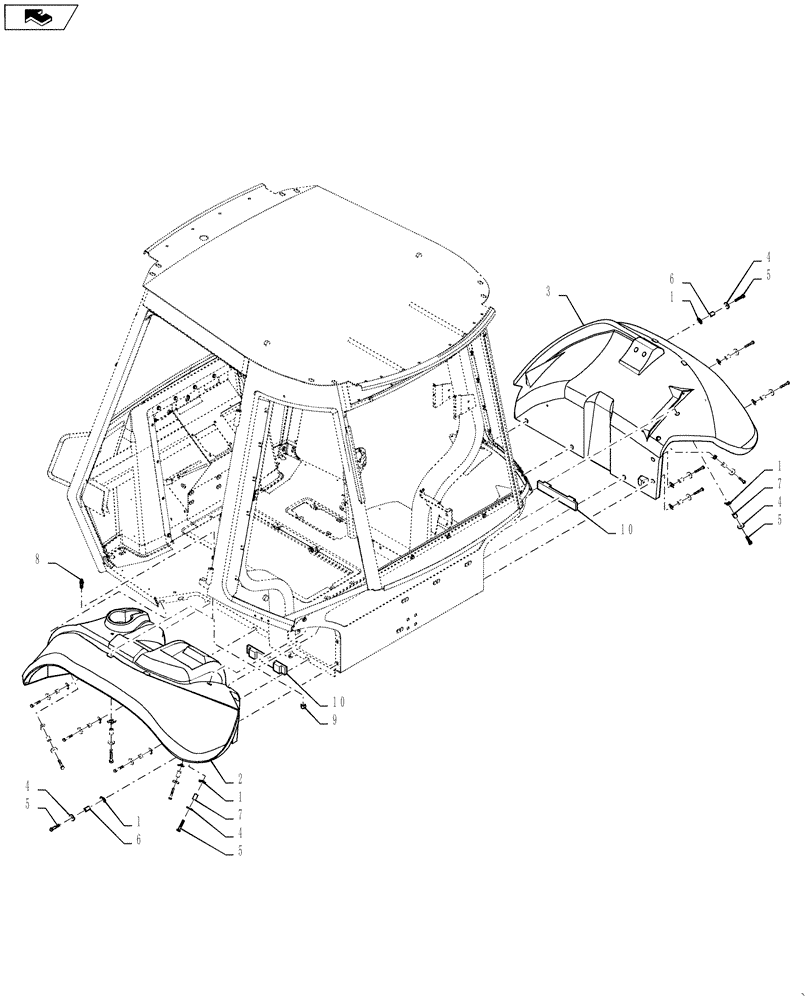

Запчасти Case 570NXT (90.116.AC[01]) - FENDERS CAB OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

833-40408

NUT,M8, U

Spring

18шт.

2

87573630

FENDER

LH Cab

1шт.

3

87573626

FENDER

RH Cab

1шт.

4

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

M10 Flat

19шт.

5

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

18шт.

6

87593433

SPACER,12.6mm ID x 16mm OD x 14mm Thk

Fender

4шт.

7

87580819

SPACER

Fender

14шт.

8

139362A1

BALL JOINT

Stud

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

10

188482A1

SEALING STRIP

Foam

2шт.
