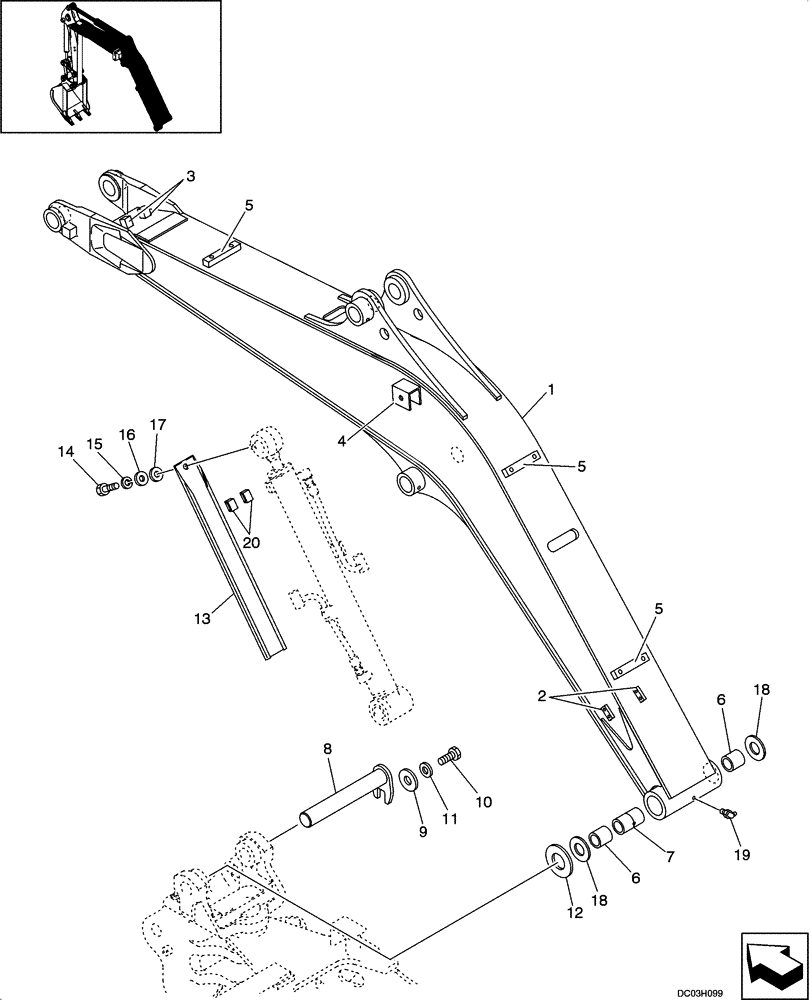

Запчасти Case CX25 (09-46[00]) - BOOM (09) - CHASSIS/ATTACHMENTS

PV02B00098F1

BOOM ASSY., Incl 1 - 7

1шт.

2

PW02B01260P1

BLOCK

BLOCK, Tapped

2шт.

3

PM02B01253P1

BLOCK

2шт.

5

PM02B01266P1

BLOCK

3шт.

6

PM12B01203P1

BUSHING,40mm ID x 50mm OD x 40mm L

2шт.

7

PM02B01255P1

COLLAR

1шт.

9

2418T21137

WASHER

1шт.

10

ZS18C10025

SCREW,Hex, M10 x 25mm

1шт.

11

ZW26X10000

LOCK WASHER

1шт.

14

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

15

ZW26X08000

LOCK WASHER

1шт.

16

2418T12753

WASHER

1шт.

17

PN03M01009D1

WASHER

1шт.

18

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

2шт.

19

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

20

PH02B01004P1

TUBE

2шт.
