(03-06[00]) - FUEL INJECTION PUMP

Запчасти Case CX25 (03-06[00]) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

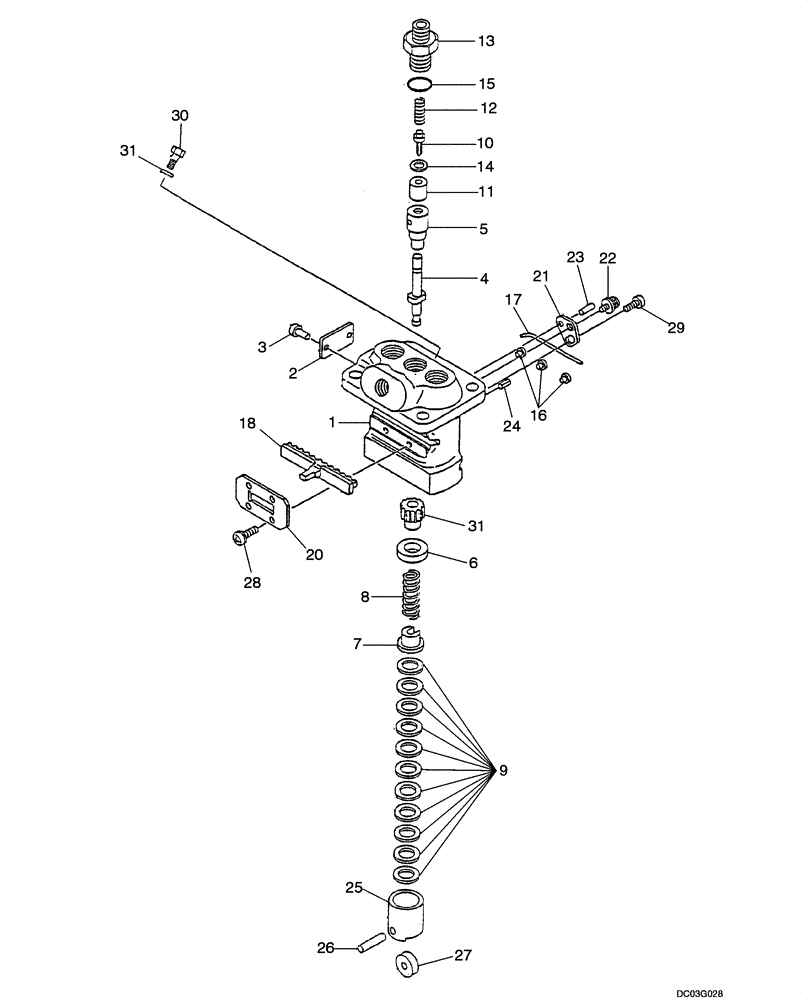

Схема запчастей Case CX25 - (03-06[00]) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
31
4
15
8
26
10
13
2
29
24
7
17
31
9
21
16
1
6
27
5
11
14
12
30
3
22
18
23
25
28
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV71962451100

FUEL INJECTION PUMP

FUEL INJECTION PUMP, Incl. 2 - 29

1шт.

2

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

3

NSS

NOT SOLD SEPARAT

Rivet

2шт.

4

VV11962051101

PLUNGER

PLUNGER, Incl. 5

3шт.

5

NSS

NOT SOLD SEPARAT

BARREL

3шт.

6

VV11962051170

RETAINER

RETAINER

3шт.

7

VV11962051180

RETAINER

RETAINER

3шт.

8

VV11962051190

SPRING

SPRING, Plunger

3шт.

9

VV11962051250

SHIM

SHIM PACK

3шт.

10

VV11962051300

VALVE SEAT

VALVE, Delivery, Incl. 11

3шт.

11

NSS

NOT SOLD SEPARAT

SEAT, Valve Delivery

3шт.

12

VV10554651330

SPRING

SPRING, Delivery Valve

3шт.

13

VV11962051340

HOLDER

HOLDER, Delivery Valve

3шт.

14

VV11962051350

GASKET

GASKET, Delivery

3шт.

15

VV11962051370

O-RING

3шт.

16

VV11962051450

GUIDE

GUIDE, Plunger

3шт.

17

VV11962051461

PIN

PIN

1шт.

18

VV11966051500

RACK

RACK

1шт.

19

VV11962051510

PINION

PINION

3шт.

20

VV11966051530

RETAINER

RETAINER,Rack

1шт.

21

VV11962051650

PLATE

PLATE

2шт.

22

VV11962051660

SCREW

SCREW

2шт.

23

VV11962051670

PIN

PIN

2шт.

24

VV11962051680

PIN

PIN

1шт.

25

VV11962051700

TAPPET

TAPPET ASSY., Incl.26, 27

3шт.

26

NSS

NOT SOLD SEPARAT

PIN

3шт.

27

NSS

NOT SOLD SEPARAT

SPACER

3шт.

28

VV26022040082

SCREW

SCREW M4 x 8 mm

4шт.

29

VV26033040102

SCREW

SCREW M4 x 10 mm

2шт.

30

VV11926651900

BOLT

BOLT

1шт.

31

VV22190080002

SEAL

SEAL WASHER

1шт.
