(02-10[00]) - RADIATOR

Запчасти Case CX47 (02-10[00]) - RADIATOR (02) - ENGINE

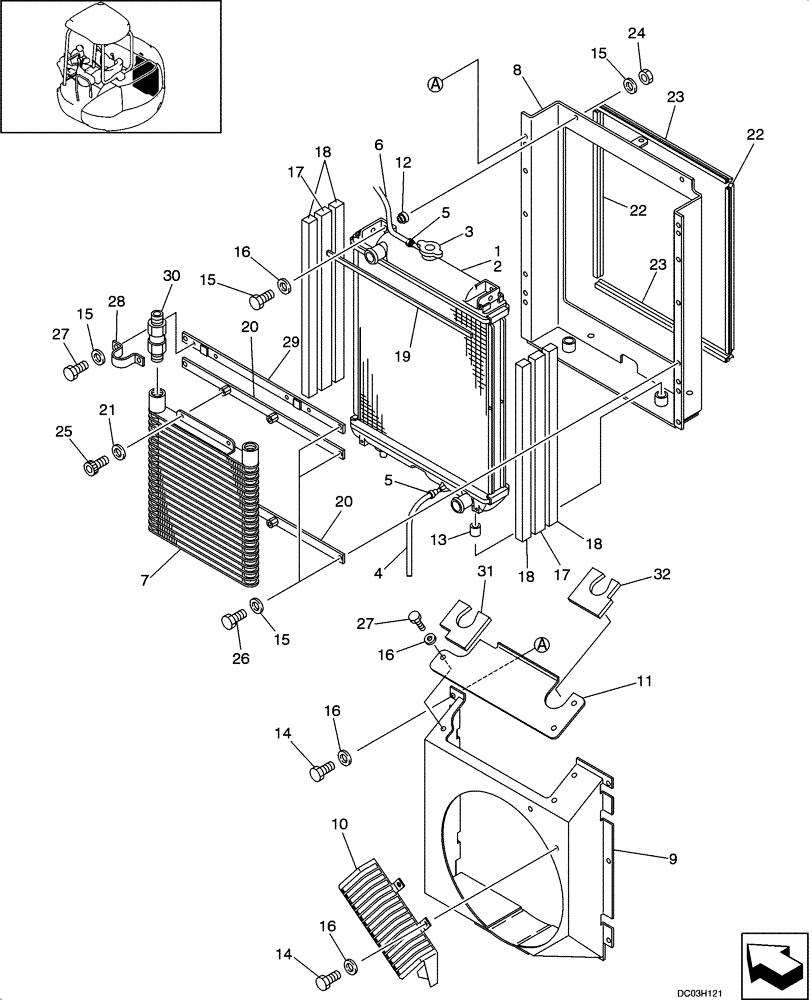

Схема запчастей Case CX47 - (02-10[00]) - RADIATOR (02) - ENGINE
16
30
10
15
8
15
2
29
24
32
20
14
27
1
31
23
5
12
19
5
14
15
6
11
4
3
17
23
16
28
18
18
18
15
22
16
21
13
16
25
7
17
27
26
20
22
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

YANMAR DEISEL ENGINE

1шт.

4TNE88 - EYBC

1шт.

PY05P00017F1

RADIATOR

Incl. 1 - 32

1шт.

1

PH05P00012F1

RADIATOR

Incl. 2 - 6

1шт.

2

PH05P00012S001

RADIATOR

1шт.

3

PM05P00010S002

RADIATOR CAP

1шт.

4

PH05P00012S003

HOSE

1шт.

5

2452U267S8

CLIP

4шт.

6

PH05P00012S005

HOSE

1шт.

7

PY53V00002P1

OIL COOLER

1шт.

8

PY05P01094P1

BRACKET

1шт.

9

PY05P01077P1

SHROUD

1шт.

10

PY05P01095P1

GUARD

1шт.

11

PH05P01113P1

COVER

1шт.

12

PH05P01114P1

SPACER

2шт.

13

PH05P01144P1

RUBBER

2шт.

14

ZS18C08016

SCREW,Hex, M8 x 16mm

8шт.

15

ZS18C08025

SCREW,Hex, M8 x 25mm

2шт.

16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

25шт.

17

PH05P01115P1

FOAM INSULATION

2шт.

18

PH05P01116P1

FOAM INSULATION

4шт.

19

PM05P01045D2

RUBBER

1шт.

20

PH05P01134P1

SUPPORT

2шт.

21

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

4шт.

22

PM21C01136DF

WEATHERSTRIP

2шт.

23

PM21C01136DG

WEATHERSTRIP

2шт.

24

ZN18C08007

NUT

2шт.

25

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

4шт.

26

ZS18C08020

SCREW,Hex, M8 x 20mm

6шт.

27

ZS18C08014

SCREW,Hex, M8 x 14mm

7шт.

28

PH05P01138P1

CLAMP

2шт.

29

PH05P01139P1

SUPPORT

1шт.

30

PH05P01140P1

COUPLING

2шт.

31

PY05P01079P1

RUBBER

1шт.

32

PY05P01080P1

RUBBER

1шт.
