(02-20[00]) - FLYWHEEL HOUSING AND OIL PAN

Запчасти Case CX47 (02-20[00]) - FLYWHEEL HOUSING AND OIL PAN (02) - ENGINE

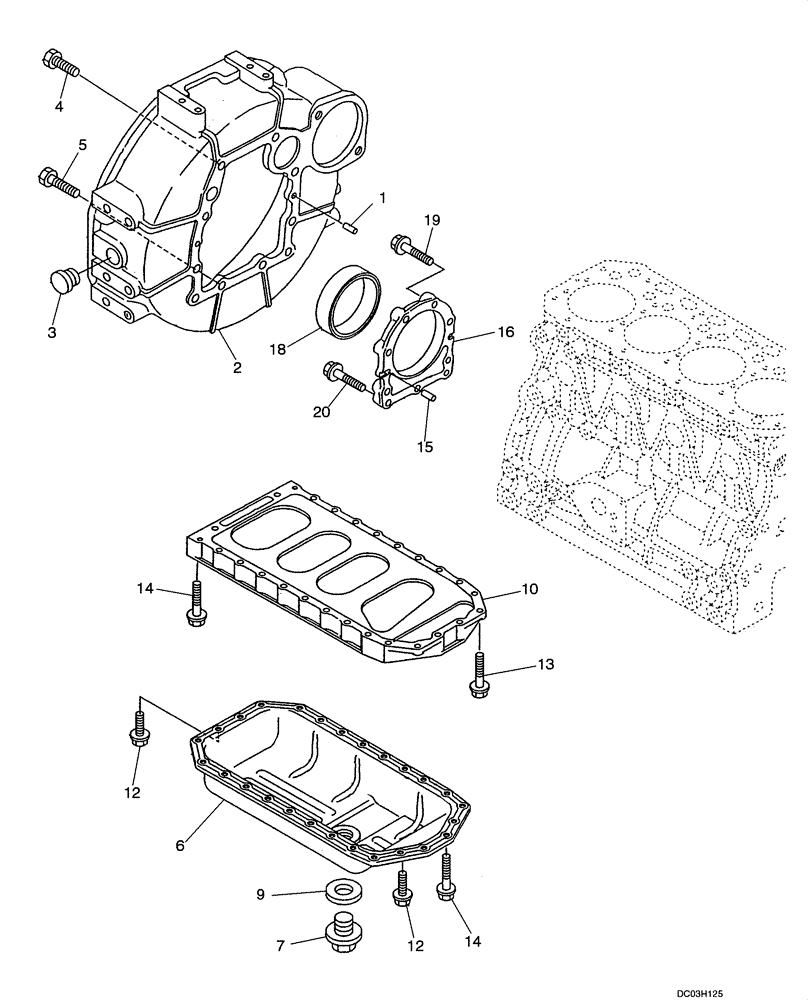

Схема запчастей Case CX47 - (02-20[00]) - FLYWHEEL HOUSING AND OIL PAN (02) - ENGINE
14
10
16
13
20
6
19
15
2
4
18
14
5
9
7
12
3
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

YANMAR DIESEL ENGINE

1шт.

4TNE88 - EYBC

1шт.

1

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

2шт.

2

VV12961201600

HOUSING

1шт.

3

VV11962001750

CAP

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10 x 25 mm

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10 x 30 mm

4шт.

6

VV72940201540

SUMP

Incl. 7, 9

1шт.

7

VV11964001640

DRAIN PLUG,M22

1шт.

9

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

1шт.

10

VV12940001730

SPACER

Oil Sump Use VV97777001212 Liquid Gasket on both sides

1шт.

12

VV26106080162

BOLT,M8 x 16mm

M8 x 16 mm

4шт.

13

VV26106080252

BOLT,M8 x 25mm

M8 x 25 mm

2шт.

14

VV26106080452

BOLT,M8 x 45mm

M8 x 45 mm

24шт.

15

VV12910001580

PIN,M8 x 16mm

8 x 16 mm

2шт.

16

VV12910001640

BOX

Incl. 18, Use VV97777001212 Liquid Gasket on Engine side

1шт.

18

VV12979501780

OIL SEAL

11шт.

19

VV12948601670

BOLT,M8 x 30mm

M8 x 30 mm

6шт.

20

VV26106080352

BOLT,M8 x 35mm

M8 x 35 mm

3шт.
