(08-07[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL

Запчасти Case CX47 (08-07[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL (08) - HYDRAULICS

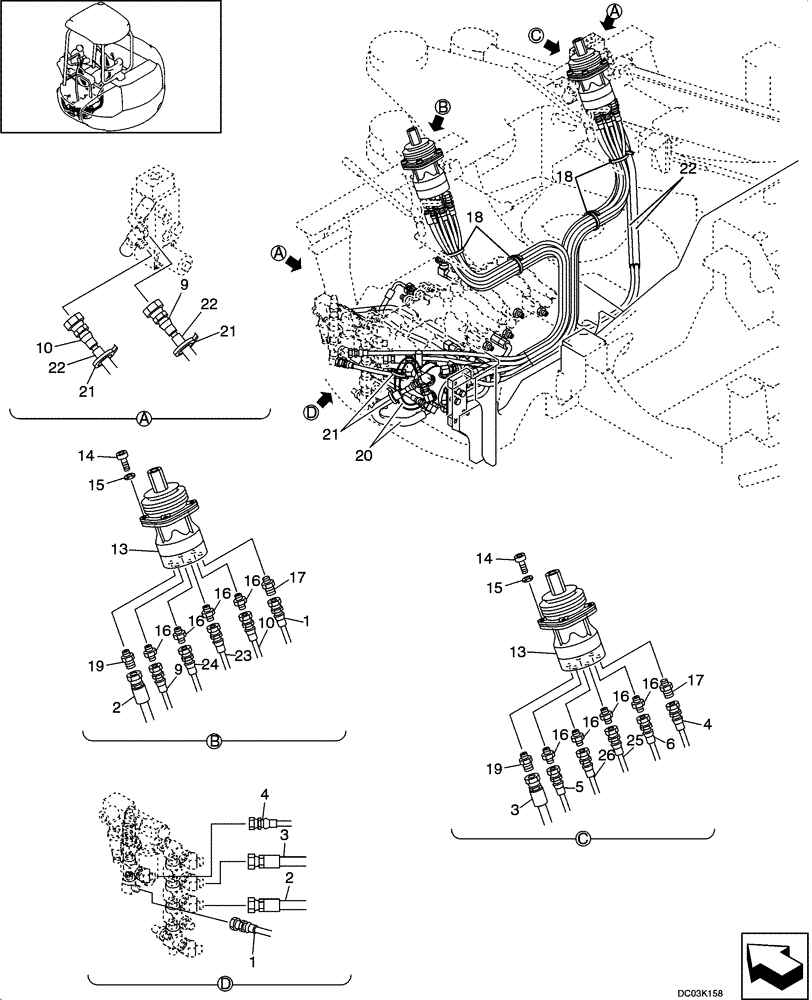

Схема запчастей Case CX47 - (08-07[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL (08) - HYDRAULICS
14
6
16
24
2
22
16
25
19
9
3
4
17
2
15
16
3
16
13
4
16
23
10
16
26
16
5
18
17
14
21
9
18
22
13
20
22
19
21
21
1
16
15
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HX24L04155DX

HOSE ASSY.

1шт.

2

HX22L06145DX

HOSE ASSY.

1шт.

3

HX22L06120DX

HOSE ASSY.

1шт.

4

HX24L04130DX

HOSE

1шт.

5

PH68H01014D1

HOSE ASSY.

1шт.

6

PH68H01035D2

HOSE ASSY.

1шт.

9

PY68H01018D4

HOSE ASSY.

1шт.

10

PH68H01005D1

HOSE ASSY.

1шт.

13

PA30V00002F2

PILOT VALVE

See Figure 08 -50

2шт.

14

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

8шт.

15

ZW16X06000

WASHER

8шт.

16

HH25S04004G1

HYD CONNECTOR

8шт.

17

HH25S04004G3

HYD CONNECTOR

2шт.

18

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

4шт.

19

HH25S06004G1

HYD CONNECTOR

2шт.

20

PU13E01002DK

TUBE

2шт.

21

PY01P01043D3

CABLE TIE,188mm L

5шт.

22

PU13E01002D8

TUBE

3шт.

23

PH68H01018D2

HOSE ASSY.

1шт.

24

PH68H01018D3

HOSE ASSY.

1шт.

25

PH68H01019D3

HOSE ASSY.

1шт.

26

PH68H01018D4

HOSE ASSY.

1шт.
