(02-01[00]) - ENGINE, MOUNTING

Запчасти Case CX47 (02-01[00]) - ENGINE, MOUNTING (02) - ENGINE

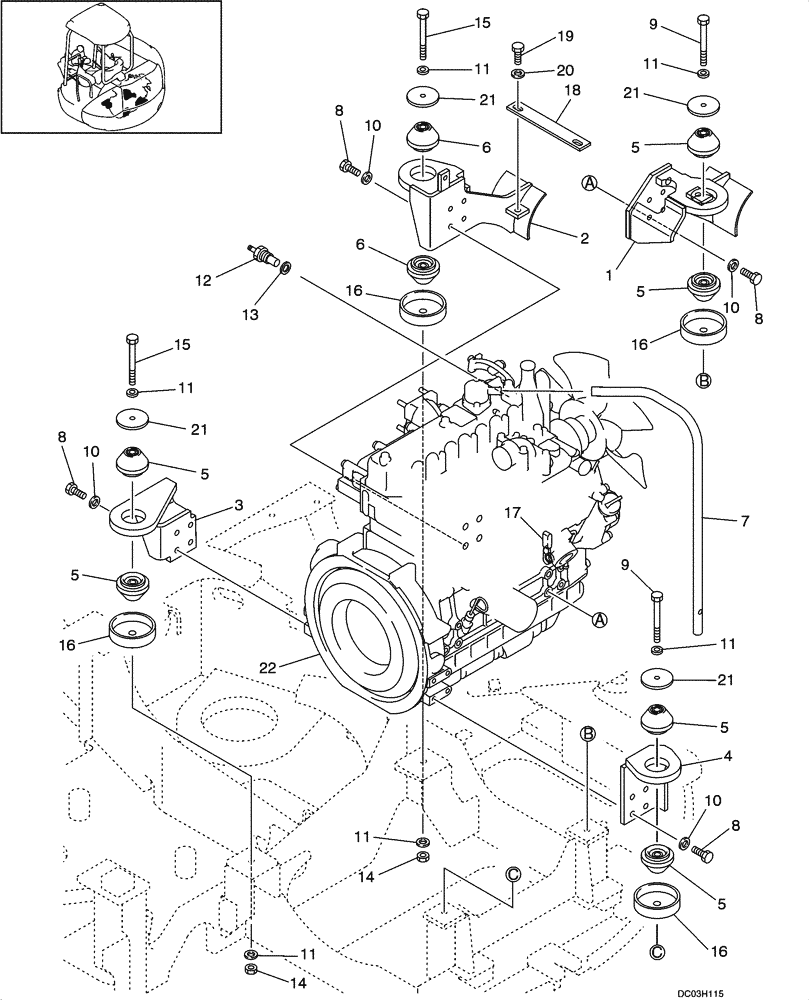

Схема запчастей Case CX47 - (02-01[00]) - ENGINE, MOUNTING (02) - ENGINE
16
5
11
16
7
2
15
14
6
5
19
10
9
8
8
14
9
5
15
21
10
13
5
11
17
20
18
11
4
10
16
21
22
5
3
11
11
11
8
16
21
8
5
1
12
6
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

YANMAR DIESEL ENGINE

1шт.

.

4TNE88 - EYBC

1шт.

1

PY02P01031P1

BRACKET

1шт.

2

PY02P01026P1

BRACKET

1шт.

3

PH02P01038P1

BRACKET

1шт.

4

PH02P01037P1

BRACKET

1шт.

5

PW01P01001D3

RUBBER MOUNTING

6шт.

6

PW01P01001D4

RUBBER MOUNTING

2шт.

7

PW02P01027D5

HOSE

1шт.

8

ZS18C10025

SCREW,Hex, M10 x 25mm

16шт.

9

HS18C12115G2

SCREW,M12 x 115mm, Cl 10.9

2шт.

10

ZW16H10000

WASHER

16шт.

11

ZW16H12000

WASHER

6шт.

12

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

13

PA13E01027P1

PACKING

1шт.

14

ZN18C12010

NUT

2шт.

15

ZS18C12120

SCREW,Hex, M12 x 120mm

2шт.

16

PH02P01015P2

COVER

4шт.

17

PW02P01028P1

CAP

1шт.

18

PY02P01027P1

STAY

1шт.

19

ZS18C10030

SCREW,Hex, M10 x 30mm

2шт.

20

ZW16X10000

WASHER

2шт.

21

PW01P01022P1

WASHER

4шт.

22

PY02P00010F4

ENGINE

See Figure 02 -02

1шт.
