(08-024[00]) - CYLINDER ASSY, BUCKET (PU01V00035F1)

Запчасти Case CX17B (08-024[00]) - CYLINDER ASSY, BUCKET (PU01V00035F1) (35) - HYDRAULIC SYSTEMS

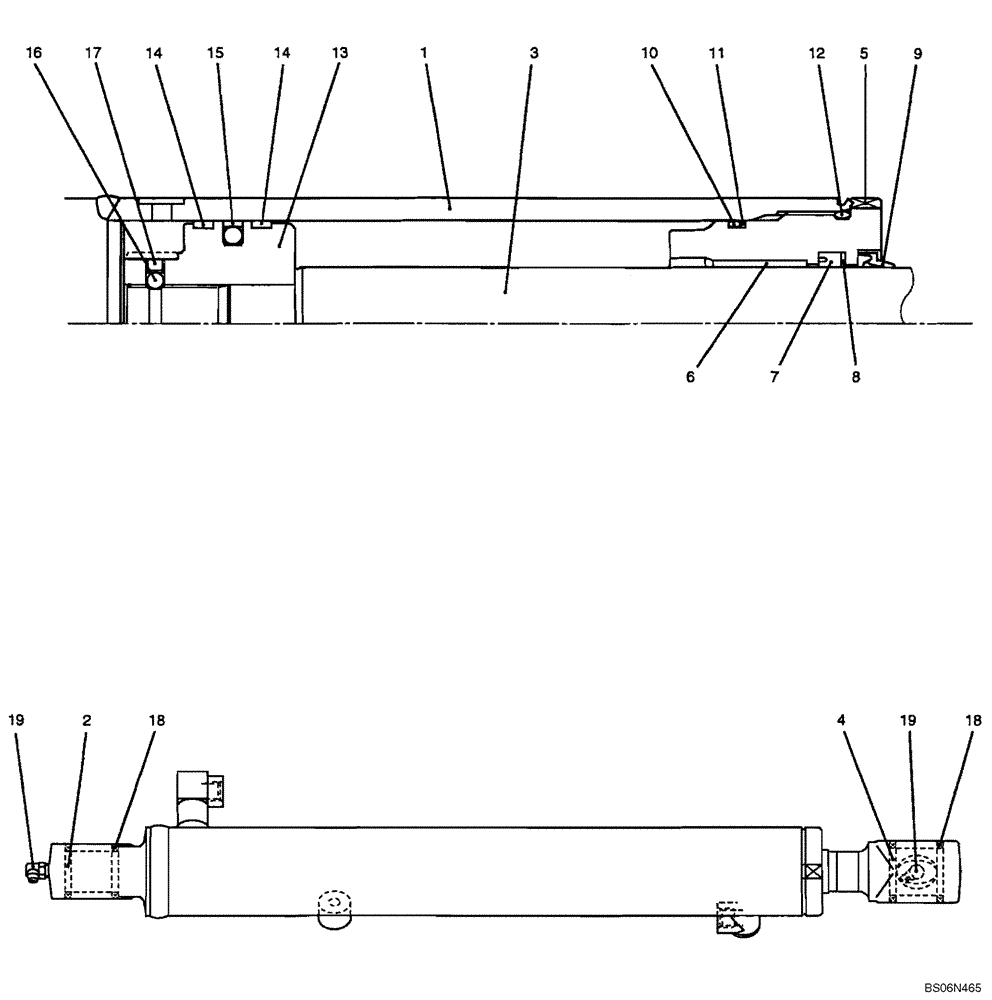

Схема запчастей Case CX17B - (08-024[00]) - CYLINDER ASSY, BUCKET (PU01V00035F1) (35) - HYDRAULIC SYSTEMS
16
17
13
15
6
9
3
1
12
7
8
4
10
5
19
18
2
11
14
18
14
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU01V00035F1

CYLINDER

CYLINDER ASSY, BUCKET (PU01V00035F1)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PU01V00035S002

BUSHING

Pin, Bushing

1шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PN01V00003S002

BUSHING

Pin, Bushing

1шт.

5

PU01V00035S005

CYLINDER HEAD

Cylinder head

1шт.

6

PU01V00035S006

BUSHING

Bushing

1шт.

7

PM01V00009S005

BACK-UP RING

U-Ring

1шт.

8

JJ01V00016S006

BACK-UP RING

Ring, Backup

1шт.

9

PU01V00013S007

WIPER

Ring

1шт.

10

ZD12G04500

O-RING,44.40mm ID x 50.60mm OD x 3.10mm

1шт.

11

PU01V00008S009

BACK-UP RING

1шт.

12

PL07V00001S008

BODY

O-Ring

1шт.

13

PU01V00035S013

PISTON

Piston

1шт.

14

PA01V00014S018

RING

Ring, Slide

2шт.

15

PU01V00008S013

SEAL

Ring

1шт.

16

2438U988S19

BALL

1шт.

17

2438U988S18

SET SCREW

1шт.

18

PN54D01001D1

DUST CAP

Seal, Dust

4шт.

19

ZG91U02000

LUBE NIPPLE

2шт.

k

PU01V00035R100

TUBE

REPAIR KIT; Includes 1x1, 2x1, 18x2

1шт.

k

PU01V00035R200

ROD

REPAIR KIT; Includes 3x1, 4x1, 18x2

1шт.

k

PU01V00035R300

REPAIR KIT

REPAIR KIT; Includes 7x1, 8x1, 9x1, 10x1, 11x1, 12x1, 14x2, 15x1

1шт.
