(08-027[00]) - CYLINDER ASSY, CRAWLER (PU01V00030F1)

Запчасти Case CX17B (08-027[00]) - CYLINDER ASSY, CRAWLER (PU01V00030F1) (35) - HYDRAULIC SYSTEMS

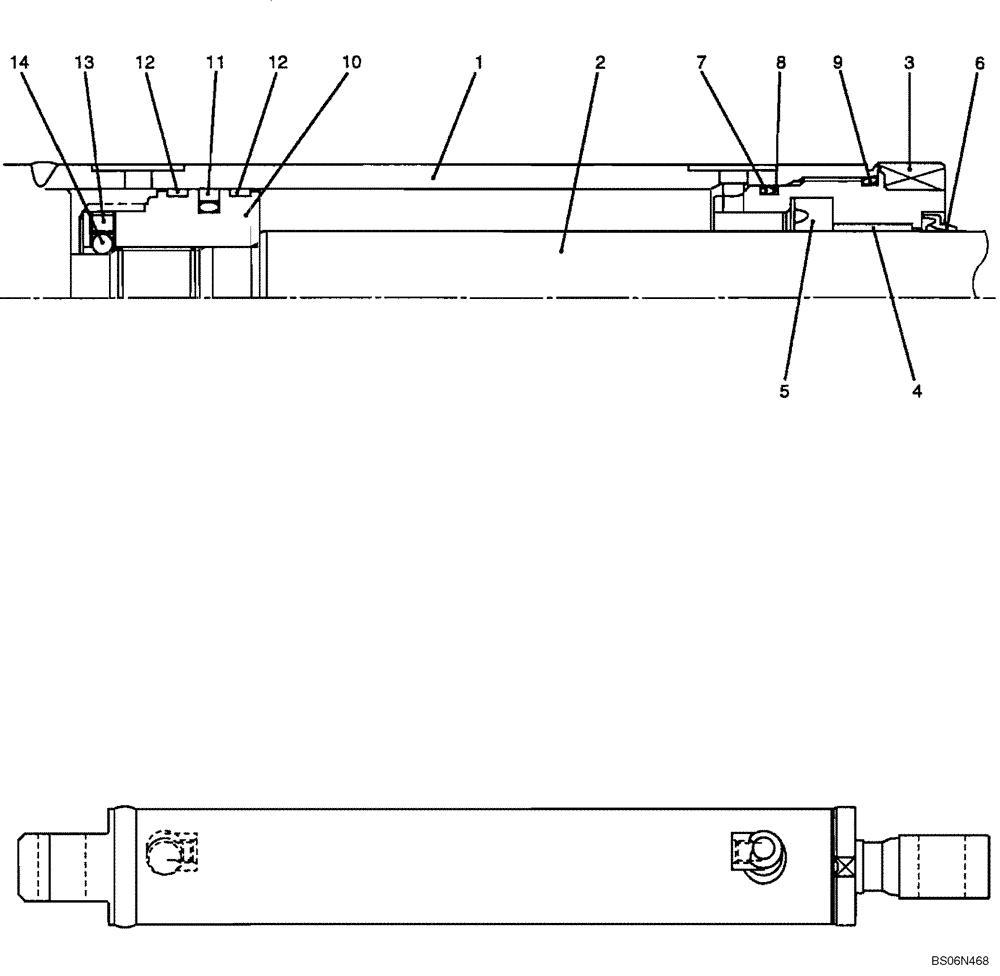

Схема запчастей Case CX17B - (08-027[00]) - CYLINDER ASSY, CRAWLER (PU01V00030F1) (35) - HYDRAULIC SYSTEMS
14
12
4
6
1
5
10
2
11
8
7
3
9
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU01V00030F1

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 330mm Stroke

CYLINDER ASSY, CRAWLER (PU01V00030F1)

1шт.

1

PU01V00030S001

TUBE,55 mm ID x 70 mm OD x 444 mm L

Tube, Cylinder

1шт.

2

PU01V00030S002

PISTON ROD

Rod, Piston

1шт.

3

PU01V00030S003

CYLINDER HEAD

Cylinder Head

1шт.

4

PU01V00030S004

BUSHING

Bushing

1шт.

5

PU01V00030S005

O-RING

U-Ring

1шт.

6

PU01V00013S007

WIPER

Ring

1шт.

7

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

1шт.

8

PM01V00050S010

BACK-UP RING

1шт.

9

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

O-Ring

1шт.

10

PU01V00030S010

PISTON

Piston

1шт.

11

PM01V00009S012

RING

Seal

1шт.

12

PU01V00030S012

RING

Ring, Slide

2шт.

13

2438U988S18

SET SCREW

1шт.

14

2438U988S19

BALL

1шт.

k

PU01V00030R100

REPAIR KIT

REPAIR KIT; Includes 5x1, 6x1, 7x1, 8x1, 9x1, 11x1, 12x2

1шт.
