(01-040[00]) - GAUGE ASSY, CLUSTER (PU59S00001F1)

Запчасти Case CX17B (01-040[00]) - GAUGE ASSY, CLUSTER (PU59S00001F1) (55) - ELECTRICAL SYSTEMS

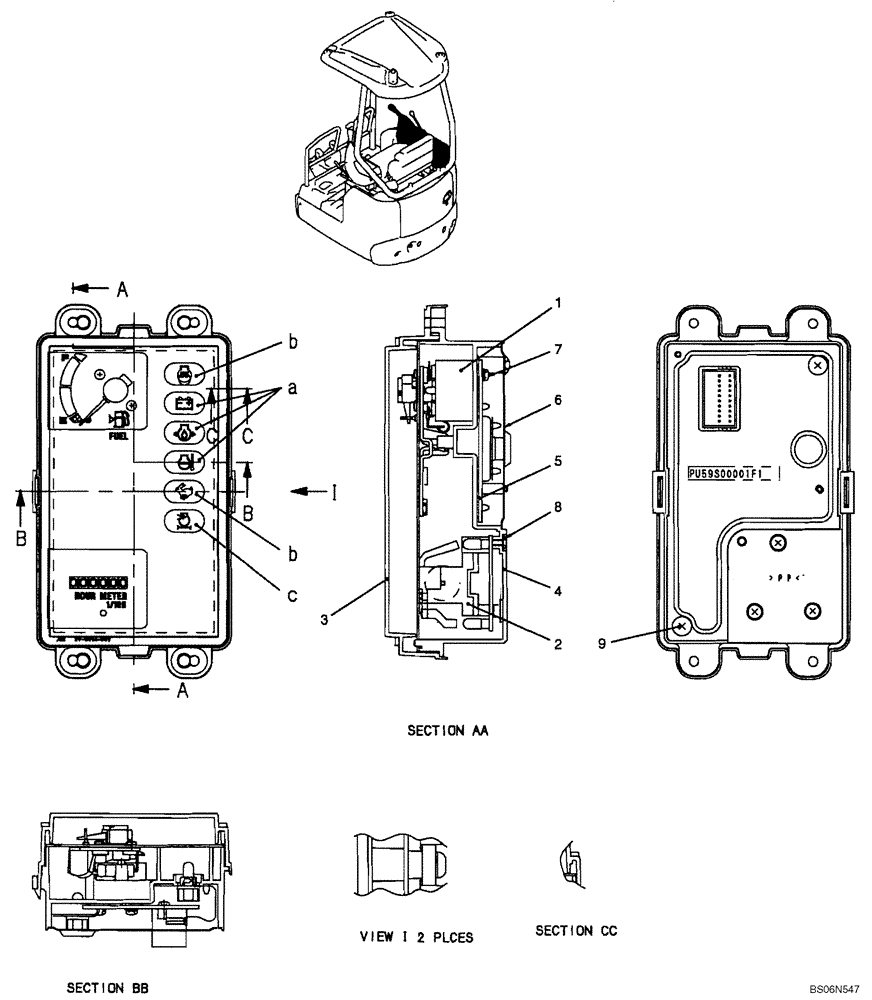

Схема запчастей Case CX17B - (01-040[00]) - GAUGE ASSY, CLUSTER (PU59S00001F1) (55) - ELECTRICAL SYSTEMS
1
3
5
4
7
9
6
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU59S00001F1

GAUGE

Gauge, Cluster (PU59S00001F1)

1шт.

1

PU59S00001S001

INSTRUMENT PANEL

Panel

1шт.

2

PM59S00002S007

METER

1шт.

3

PM59S00002S008

GLASS

1шт.

4

PM59S00002S009

CASE

1шт.

5

PM59S00002S012

BOARD

Printed

1шт.

6

PM59S00002S013

COVER

1шт.

7

PM59S00002S014

SCREW

3шт.

8

PH59S00002S012

SCREW

3шт.

9

PM59S00002S016

SCREW

2шт.
