(01-042[02]) - ELECTRICAL ASSY, UPPER (CABLE, FUSE, RELAY)

Запчасти Case CX17B (01-042[02]) - ELECTRICAL ASSY, UPPER (CABLE, FUSE, RELAY) (55) - ELECTRICAL SYSTEMS

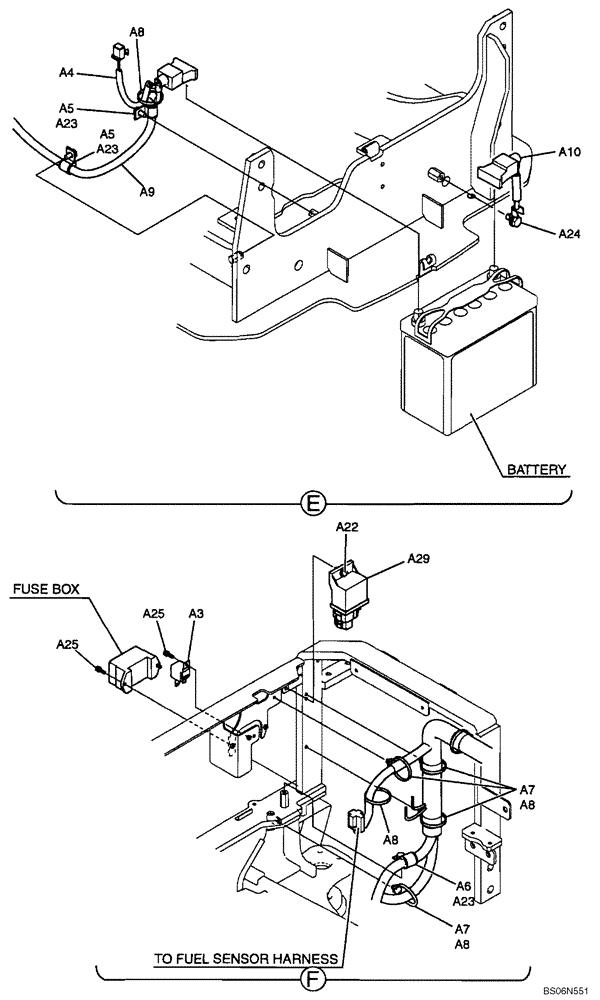

Схема запчастей Case CX17B - (01-042[02]) - ELECTRICAL ASSY, UPPER (CABLE, FUSE, RELAY) (55) - ELECTRICAL SYSTEMS
a5
a23
a3
a23
a4
a8
a7
a5
a23
a8
a8
a25
a9
a6
a10
a24
a7
a8
a29
a22
a25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

a3

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

a4

PU73S00003P1

FUSE

Fuse

1шт.

a5

EW02E01015D6

CLIP

2шт.

a6

EW02E01015D8

CLIP

1шт.

a7

YN13E01375P1

CLIP,M8 x 8.20mm Shank

Clip

4шт.

a8

PY01P01043D3

CABLE TIE,188mm L

6шт.

a9

PU13E01049P1

CABLE

Cable

1шт.

a10

PU13E01050P1

CABLE

Cable

1шт.

a22

ZM73C06020

BOLT,M6x20mm - Course Thread

Bolt

1шт.

a23

ZM73C08016

BOLT,M8x16mm - Course Thread

Bolt

3шт.

a24

ZM73C10020

BOLT,M10x20mm - Course Thread

Bolt

1шт.

a25

ZM61C05016

BOLT

3шт.

a29

VA31A6606100

CONTROL

(Used for Engine Stop Timer)

1шт.
