(09-025[00]) - STARTER ASSY

Запчасти Case CX17B (09-025[00]) - STARTER ASSY (55) - ELECTRICAL SYSTEMS

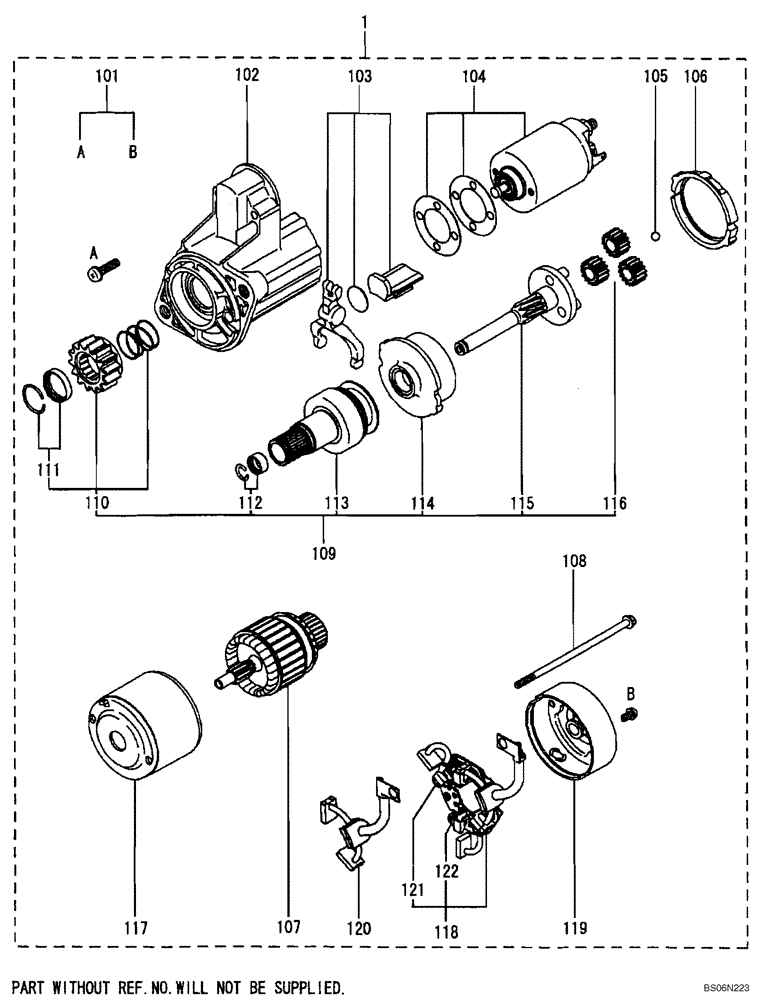

Схема запчастей Case CX17B - (09-025[00]) - STARTER ASSY (55) - ELECTRICAL SYSTEMS
109
111
110
107
112
105
116
121
113
104
1
119
101
114
118
106
108
103
117
115
120
122
102
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

STARTER ASSY

1шт.

PARTS WITHOUT REF. NUMBERS WILL NOT BE SUPPLIED

1шт.

1

VA30L6610500

STARTER MOTOR

Starter Assy; M001T68381 MEC

1шт.

101

VAM414X00474

SCREW

Screw Set

1шт.

102

VAM641XB2272

BRACKET

Bracket Assy, Front

1шт.

103

VAM864X09773

LEVER

Lever Set

1шт.

104

VAM371X71973

SWITCH ASSY

Switch Assy

1шт.

105

VAS409S00008

BALL

Ball

1шт.

106

VAM578X31771

PACKING

Packing

1шт.

107

VAM106X59371

ARMATURE

Armature

1шт.

108

VAM981X73275

BOLT

Bolt

2шт.

109

VAM357X93871

SHAFT

Shaft Assy, Clutch

1шт.

110

VAM605X73171

PINION

Pinion Set

1шт.

111

VAM385X06171

STOP

Stopper Set

1шт.

112

VAM385X07271

STOP

Stopper Set

1шт.

113

VAM191X18671

CLUTCH

Clutch, Over Running

1шт.

114

VAM135X03071

GEAR

Gear Assy, Internal

1шт.

115

VAM357X67671

SHAFT

Shaft Assy, Gear

1шт.

116

VAM230X00471

GEAR

Gear Assy

3шт.

117

VAM800X63076

HOUSING

Yoke Assy

1шт.

118

VAM649X01271

HOLDER

Holdeer Assy, Brush

1шт.

119

VAM642X19373

BRACKET

Bracket Assy, Rear

1шт.

120

VAM647X00571

COMMUTATOR BRUSH

Brush Assy

1шт.

121

VAM391X03271

SPRING

Spring, Brush

2шт.

122

VAM391X03371

SPRING

Spring, Brush

2шт.
