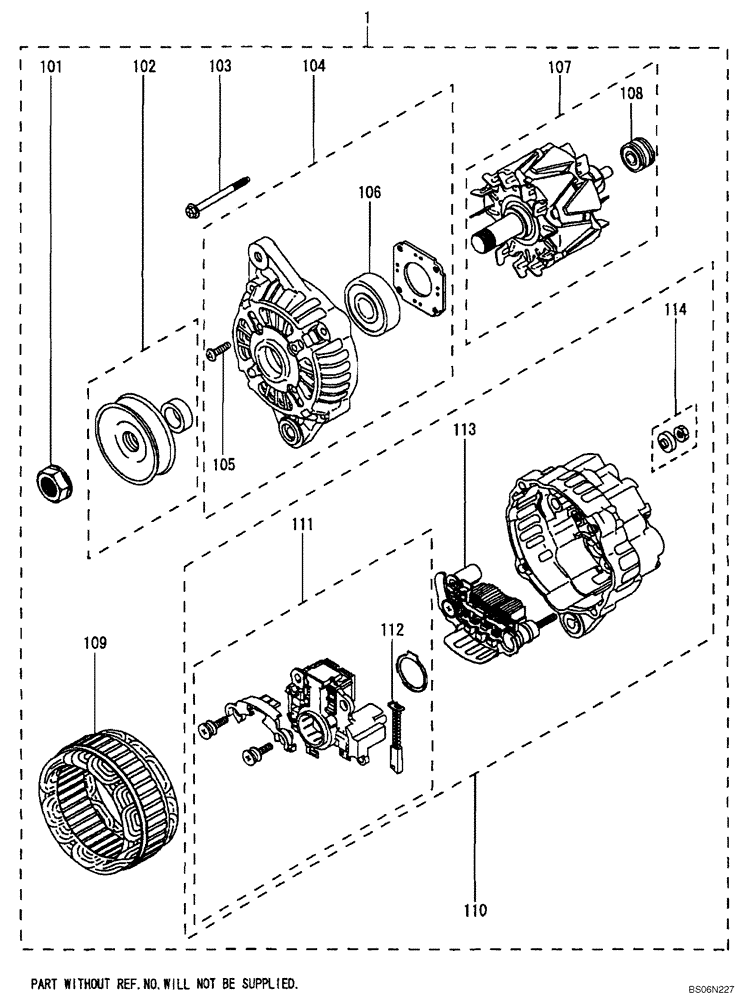

Запчасти Case CX17B (09-029[00]) - ALTERNATOR ASSY (55) - ELECTRICAL SYSTEMS

.

ALTERNATOR ASSY

1шт.

.

PARTS WITHOUT REF. NUMBERS WILL NOT BE SUPPLIED

1шт.

1

VA30A6800801

ALTERNATOR

Alternator Assy; 12 Volt; 40 amp; A007TA0171B MEC

1шт.

101

VAA981X20771

NUT

Nut

1шт.

102

VAA628T62170

PULLEY ASSY.

Pulley Assy

1шт.

103

VAA414X19271

BOLT

Set

1шт.

104

VAA640X67270

BRACKET

Bracket Assy, Front

1шт.

105

VAA414X21271

SCREW

Set

1шт.

106

VAA930X94570

BEARING

Bearing, Front

1шт.

107

VAA880X83670

ROTOR

Assy

1шт.

108

VAA930P63670

BEARING ASSY

Bearing, Rear

1шт.

109

VAA383T37470

STARTER MOTOR

Stator Assy

1шт.

110

VAA642X33770

BRACKET

Assy, Rear

1шт.

111

VAA866X44682

REGULATOR

Set

1шт.

112

VAA647X50170

COMMUTATOR BRUSH

Set

2шт.

113

VAA860X52870

RECTIFIER

Assy

1шт.

114

VAA529X05571

NUT

Nut Set

1шт.
