(01-014[00]) - POWER TAKE-OFF ASSY (PU30P00013F1)

Запчасти Case CX17B (01-014[00]) - POWER TAKE-OFF ASSY (PU30P00013F1) (35) - HYDRAULIC SYSTEMS

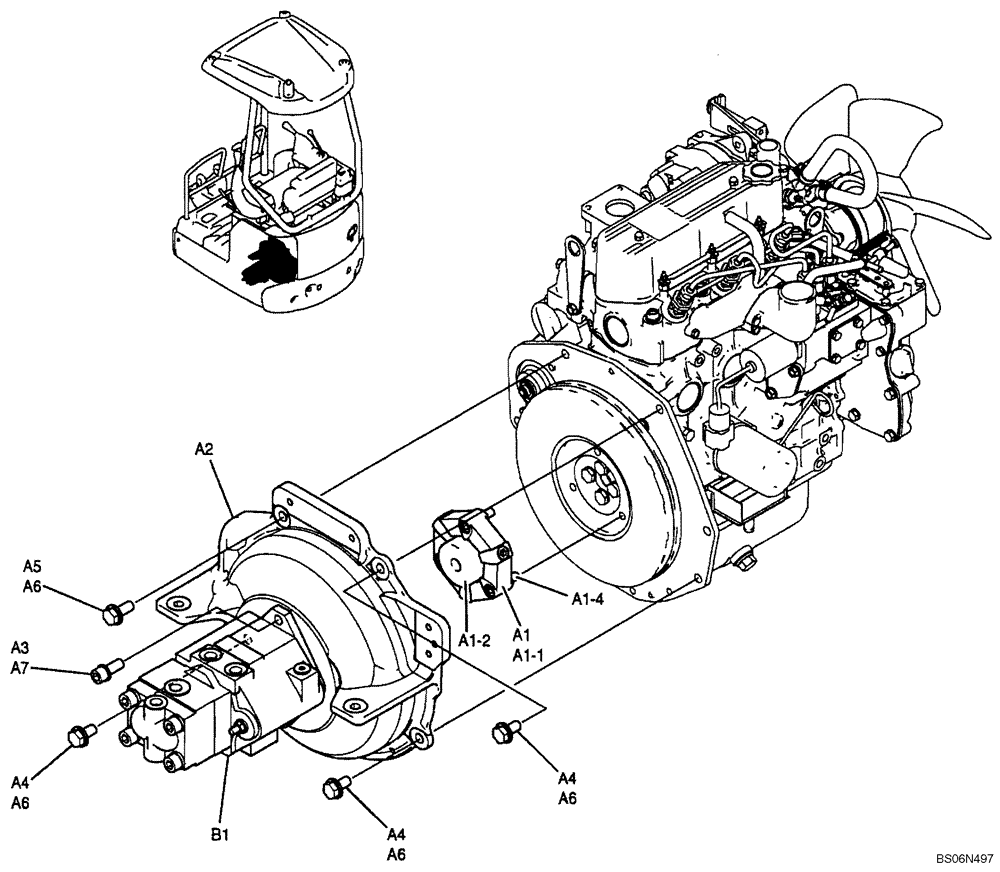

Схема запчастей Case CX17B - (01-014[00]) - POWER TAKE-OFF ASSY (PU30P00013F1) (35) - HYDRAULIC SYSTEMS
a7
a4
a5
a1-2
a6
a6
a4
a1
a4
a1-1
b1
a2
a1-4
a6
a6
a3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU30P00013F1

POWER TAKE-OFF ASSY (PU30P00013F1)

1шт.

PU30P00014F1

Power Take-Off Assy (PU30P00014F1)

1шт.

a1

PU30P01025F1

COUPLING RING

Coupling Ring Assy

1шт.

a1-1

PU30P01025S001

COUPLING RING

Coupling

1шт.

a1-2

PU30P01025S002

HUB

Hub

1шт.

a1-4

PU30P01025S003

CAP

Capscrew

6шт.

a2

PU30P01027P1

BRACKET

Bracket

1шт.

a3

PV17M01003D1

SCREW

2шт.

a4

ZS18F12025

SCREW

Screw

3шт.

a5

ZS18F12030

SCREW

Screw

1шт.

a6

ZW16H12000

WASHER

4шт.

a7

ZW16K12000

WASHER

2шт.

b1

PU10V00014F1

PUMP,7.4 CC

Pump Assy, Hydraulic; See Figure 08-021

1шт.
