(01-021[01]) - HYDRAULICS - RETURN / NIBBLER & BREAKER / AT TANK & VALVE

Запчасти Case CX17B (01-021[01]) - HYDRAULICS - RETURN / NIBBLER & BREAKER / AT TANK & VALVE (35) - HYDRAULIC SYSTEMS

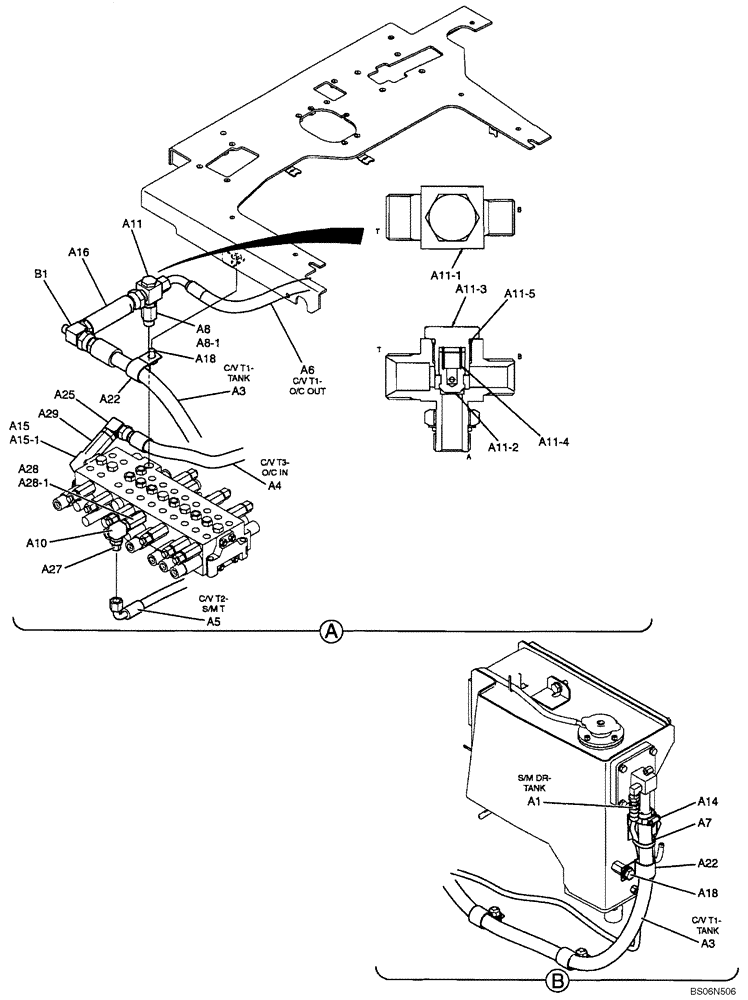

Схема запчастей Case CX17B - (01-021[01]) - HYDRAULICS - RETURN / NIBBLER & BREAKER / AT TANK & VALVE (35) - HYDRAULIC SYSTEMS
a25
a18
a3
a11-3
a18
b1
a11-2
a10
a11-4
a7
a22
a8-1
a15-1
a11
a27
a28
a11-5
a11-1
a28-1
a3
a22
a5
a1
a14
a4
a6
a29
a16
a15
a8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

a3

PU32H01003D1

HOSE

Hose

1шт.

a7

PY01P01043D8

CABLE TIE,102mm L

1шт.

a8

2444Z3713

HYD CONNECTOR

1шт.

a8-1

ZD12P01800

O-RING

1шт.

a10

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a11

PU21V00002F1

VALVE

Valve Assy, Check

1шт.

a11-1

PU21V00002S001

VALVE BLOCK (USED)

Body

1шт.

a11-2

PF21V00001S002

POPPET

Poppet

1шт.

a11-3

PF21V00001S003

PLUG

Plug

1шт.

a11-4

PF21V00001S004

SPRING

Spring

1шт.

a11-5

PF21V00001S005

O-RING

O-Ring

1шт.

a14

ZC16X03300

FASTENER

Clip

1шт.

a15

2444Z3715

90 ELBOW

1шт.

a15-1

ZD12P01800

O-RING

1шт.

a16

PU32H01006P1

WIRE CONNECTOR

Connector

1шт.

a18

ZM73C12020

BOLT,M12x20mm - Course Thread

Bolt

2шт.

a22

ZC46X31014

CLIP

2шт.

a25

HH35S08008G1

90 ELBOW

1шт.

a27

HH25S06006G1

HYD CONNECTOR

1шт.

a28

PU32H01016P1

WIRE CONNECTOR

Connector

1шт.

a28-1

ZD12P01400

O-RING

1шт.

a29

HH25R08008G4

HYD CONNECTOR

1шт.

PU32H00019F1

Hydraulic Lines, Return

1шт.

b1

PU32H01007P1

TEE

Tee

1шт.
