(01-031[00]) - HYDRAULICS - CONTROL LINES, VALVE INSTAL (PU64H00024F1, 25F1)

Запчасти Case CX17B (01-031[00]) - HYDRAULICS - CONTROL LINES, VALVE INSTAL (PU64H00024F1, 25F1) (35) - HYDRAULIC SYSTEMS

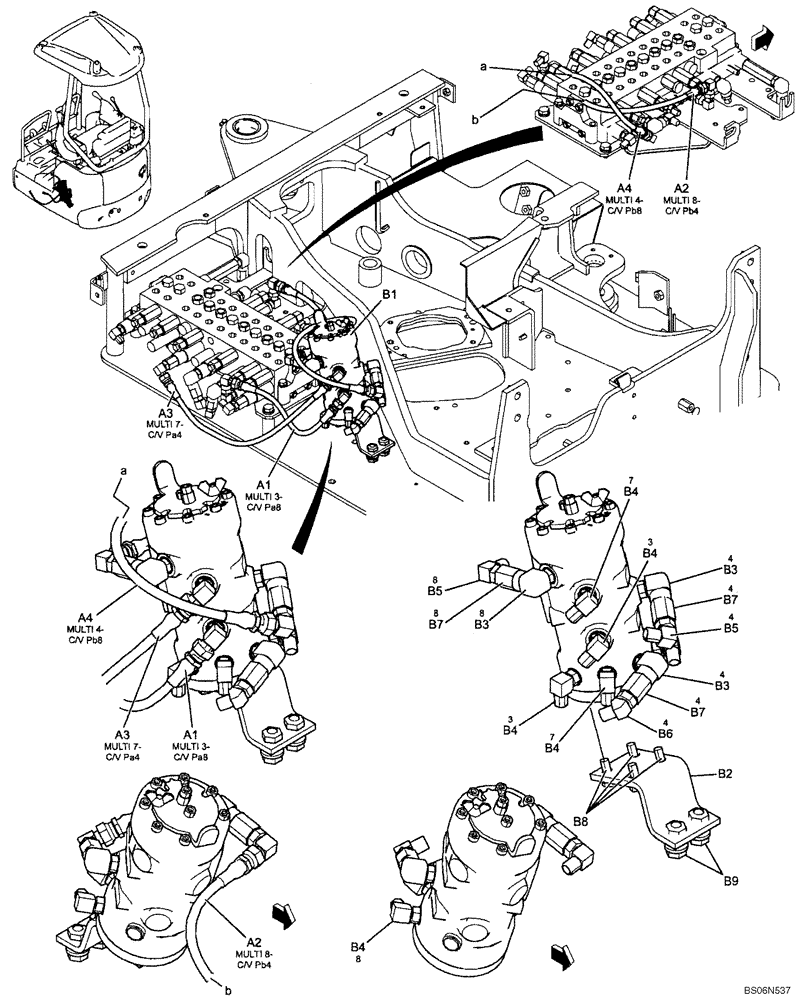

Схема запчастей Case CX17B - (01-031[00]) - HYDRAULICS - CONTROL LINES, VALVE INSTAL (PU64H00024F1, 25F1) (35) - HYDRAULIC SYSTEMS
a1
a4
b7
b4
b5
b4
3
7
b2
b3
b5
b8
4
7
4
4
a3
8
8
4
b4
b3
a2
b9
8
b4
4
b3
a1
4
b4
a2
8
b7
a3
b6
3
b1
a4
b7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CONTROL LINES, VALVE INSTAL (MULTI)

1шт.

PU64H00024F1

CONTROL LINES, MULTI (PU64H00024F1)

1шт.

a1

HX23L03030DX

HOSE

1шт.

a2

HX23L03032DX

HOSE

Hose

1шт.

a3

HX23L03044DX

HOSE,4.8mm ID x 440mm L

1шт.

a4

HX23L03048DX

HOSE

1шт.

PU64H00025F1

VALVE INSTAL (PU64H00025F1)

1шт.

b1

PX30V00060F1

CONTROL VALVE

See Figure 08-032

1шт.

b2

PU64H01039P1

BRACKET

1шт.

b3

PU64H01027P1

ELBOW

Elbow

3шт.

b4

HH35S04002G1

ELBOW

5шт.

b5

HH35S04004G1

90 ELBOW

2шт.

b6

HH45S04004G1

45 ELBOW

1шт.

b7

2444Z2525

HYD CONNECTOR

3шт.

b8

ZM73C08020

BOLT,M8x20mm - Course Thread

Bolt

4шт.

b9

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer)

2шт.
