(02-002[00]) - CYLINDER INSTAL (CRAWLER FRAME WIDTH) (PU01V00034F1)

Запчасти Case CX17B (02-002[00]) - CYLINDER INSTAL (CRAWLER FRAME WIDTH) (PU01V00034F1) (35) - HYDRAULIC SYSTEMS

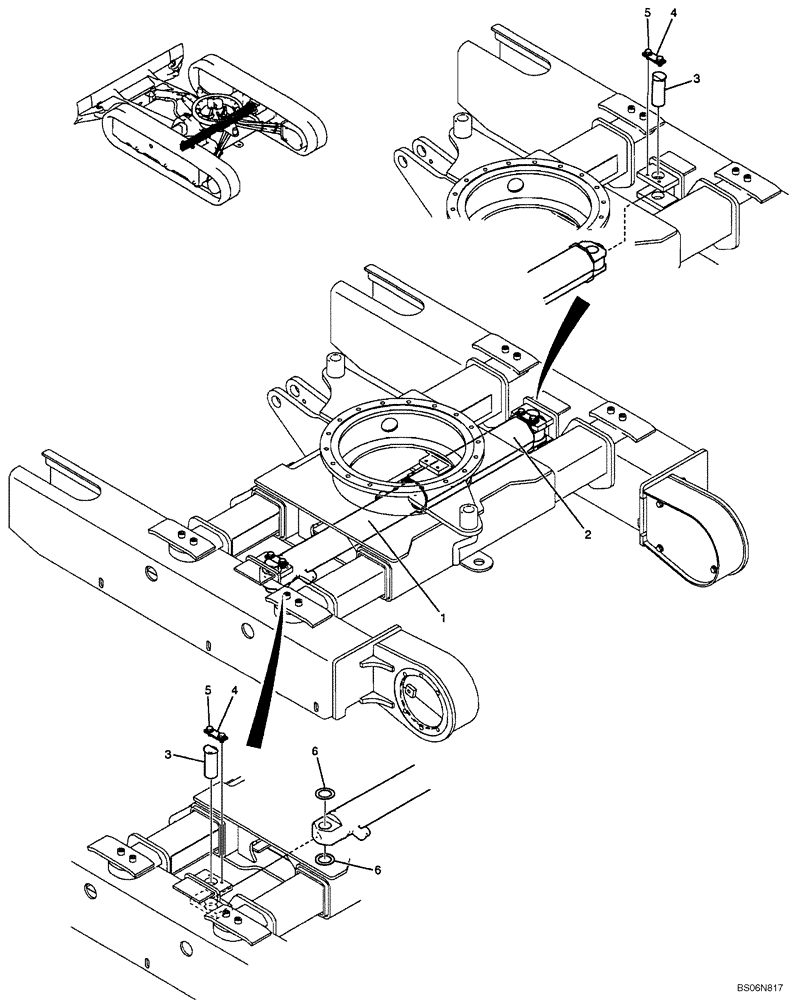

Схема запчастей Case CX17B - (02-002[00]) - CYLINDER INSTAL (CRAWLER FRAME WIDTH) (PU01V00034F1) (35) - HYDRAULIC SYSTEMS
5
6
4
1
6
4
5
3
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU01V00034F1

CYLINDER INSTAL (CRAWLER FRAME WIDTH) (PU01V00034F1)

1шт.

1

PU01V00030F1

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 330mm Stroke

Cylinder Assy, Crawler; See Figure 08-027

1шт.

2

PU01V01023P1

COVER

Cover

1шт.

3

PU01V01027P1

PIN

Pin

2шт.

4

PU01V01016P1

PLATE

Plate

2шт.

5

ZM73C08016

BOLT,M8x16mm - Course Thread

Bolt

4шт.

6

PU01V01022P1

SHIM,31mm ID x 45mm OD x 1.6mm Thk

2шт.
