(08-004[00]) - VALVE SECTION, CONTROL VALVE - DOZER (PU30V00020F1)

Запчасти Case CX17B (08-004[00]) - VALVE SECTION, CONTROL VALVE - DOZER (PU30V00020F1) (35) - HYDRAULIC SYSTEMS

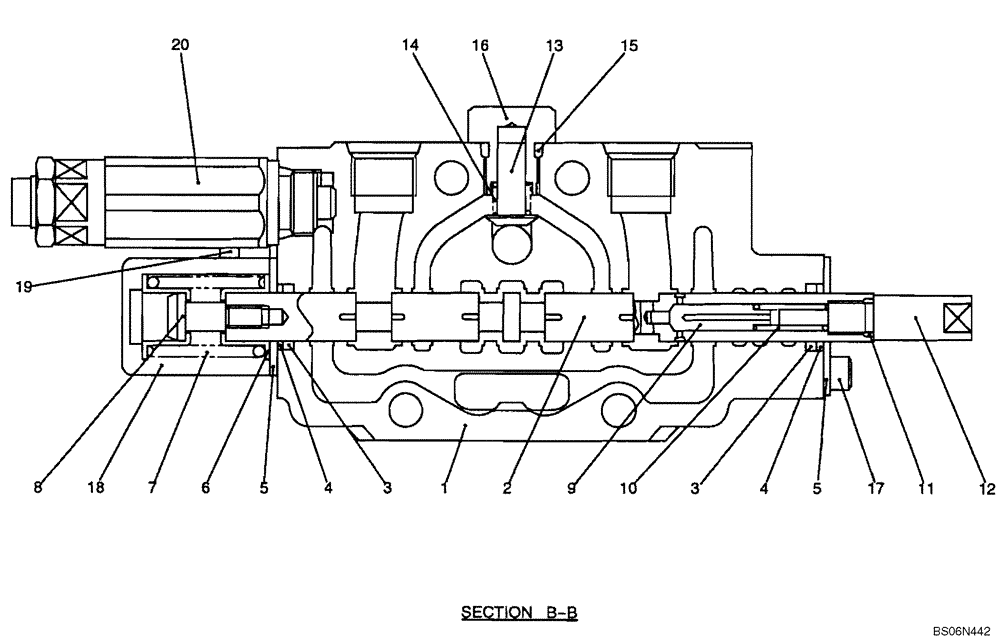

Схема запчастей Case CX17B - (08-004[00]) - VALVE SECTION, CONTROL VALVE - DOZER (PU30V00020F1) (35) - HYDRAULIC SYSTEMS
13
15
11
17
12
4
9
6
16
8
3
2
19
5
4
20
5
18
1
7
3
10
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU30V00020F1

CONTROL VALVE

VALVE ASSY, CONTROL; DOZER SECTION (PU30V00020F1)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

4

NSS

NOT SOLD SEPARAT

WIPER, DUST

2шт.

5

NSS

NOT SOLD SEPARAT

PLATE

2шт.

6

NSS

NOT SOLD SEPARAT

SPRING, SEAT

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

END, SPOOL

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

END, SPOOL

1шт.

13

PH30V00003S006

POPPET

1шт.

14

PH30V00003S007

SPRING

1шт.

15

ZD12P01100

O-RING

1шт.

16

PH30V00003S009

PLUG

1шт.

17

ZS23C05010

SOCKET,Hex Socket Head, M5 x 10mm

SCREW

2шт.

18

PH30V00003S011

COVER

1шт.

19

ZS23C05018

SOCKET,Hex Socket Head, M5 x 18mm

SCREW

2шт.

20

PM22V00005F4

VALVE PRESSURE RELIE

Overload Relief; See Figure 08-014

1шт.

k

PU30V00020R100

REPAIR KIT

REPAIR KIT, Consists of Items 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 10x1, 11x1, 12x1

1шт.
