(08-006[00]) - VALVE SECTION, CONTROL VALVE - SERVICE (PU30V00022F1)

Запчасти Case CX17B (08-006[00]) - VALVE SECTION, CONTROL VALVE - SERVICE (PU30V00022F1) (35) - HYDRAULIC SYSTEMS

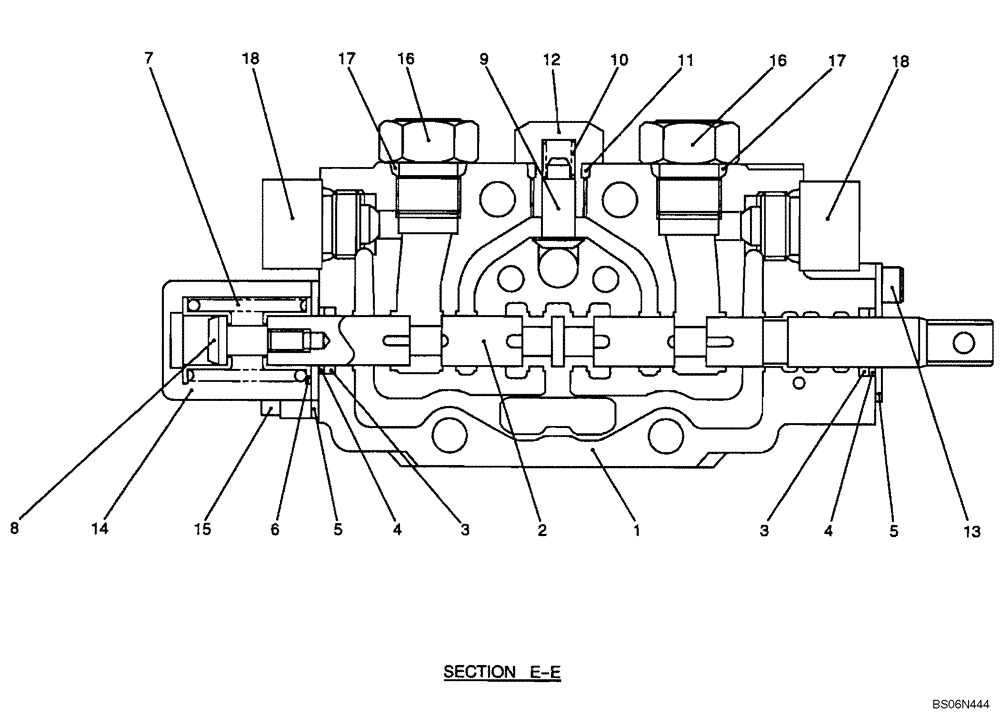

Схема запчастей Case CX17B - (08-006[00]) - VALVE SECTION, CONTROL VALVE - SERVICE (PU30V00022F1) (35) - HYDRAULIC SYSTEMS
18
3
16
3
15
4
11
4
5
1
5
9
13
6
10
14
12
17
17
7
2
18
8
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU30V00022F1

CONTROL VALVE

VALVE ASSY, CONTROL; SERVICE SECTION (PU30V00022F1)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

WIPER, DUST

2шт.

5

NSS

NOT SOLD SEPARAT

PLATE

2шт.

6

NSS

NOT SOLD SEPARAT

SPRING, SEAT

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

END, SPOOL

1шт.

9

PF30V00005S009

POPPET

1шт.

10

PF30V00005S010

SPRING

1шт.

11

ZD12P01100

O-RING

1шт.

12

PF30V00005S012

PLUG

1шт.

13

ZS23C05010

SOCKET,Hex Socket Head, M5 x 10mm

SCREW

2шт.

14

PH30V00003S011

COVER

1шт.

15

ZS23C05018

SOCKET,Hex Socket Head, M5 x 18mm

SCREW

2шт.

16

PR30V00007S014

PLUG

2шт.

17

ZD12P01400

O-RING

2шт.

18

PH50T00001F1

PLUG

Assy; See Figure 08-016

2шт.

k

PU30V00022R100

KIT

REPAIR KIT; Consists of Items 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1

1шт.
