(08-010[00]) - VALVE SECTION, CONTROL VALVE - SUPPLY, CONNECTING (PU30V00026F1)

Запчасти Case CX17B (08-010[00]) - VALVE SECTION, CONTROL VALVE - SUPPLY, CONNECTING (PU30V00026F1) (35) - HYDRAULIC SYSTEMS

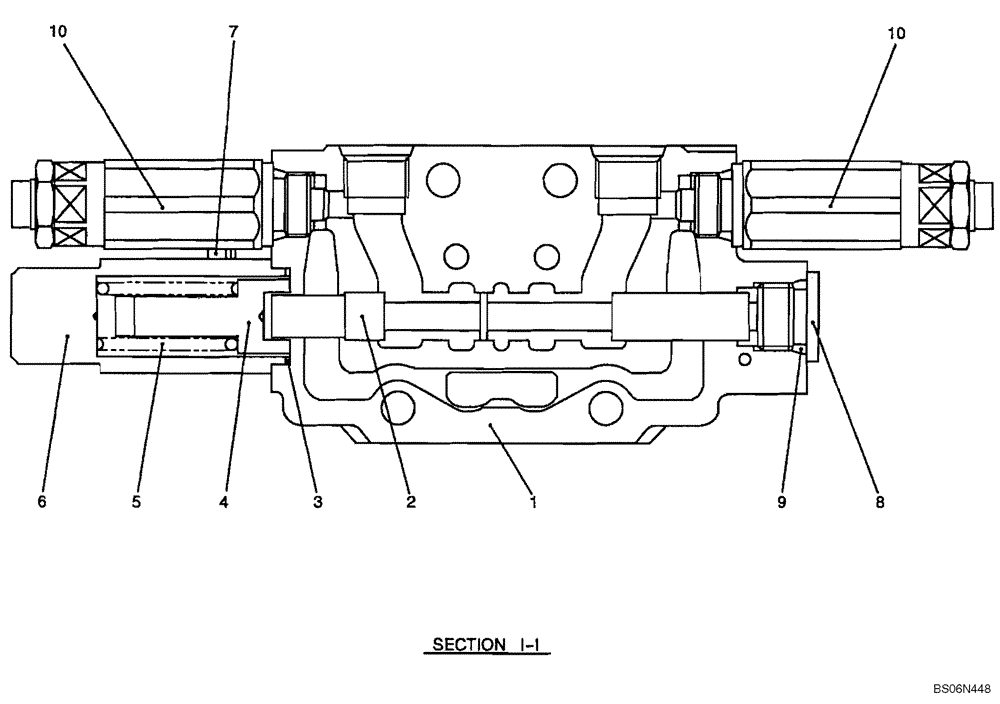

Схема запчастей Case CX17B - (08-010[00]) - VALVE SECTION, CONTROL VALVE - SUPPLY, CONNECTING (PU30V00026F1) (35) - HYDRAULIC SYSTEMS
4
2
5
10
9
3
1
6
10
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU30V00026F1

CONTROL VALVE

VALVE ASSY, CONTROL; SUPPLY, CONNECTING SECTION (PU30V00026F1)

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PW30V01008S011

O-RING

1шт.

4

PM30V00027S014

STOP

Stopper

1шт.

5

PW30V01013S013

SPRING

1шт.

6

PM30V00027S015

COVER

1шт.

7

PM30V00021S014

SCREW

SCREW

2шт.

8

YW01V00002S027

PLUG

1шт.

9

ZD12P01400

O-RING

1шт.

10

PR22V00004F9

VALVE

VALVE ASSY, RELIEF; See Figure 08-017

2шт.
