(08-012[00]) - VALVE SECTION, CONTROL VALVE - BOOM (PU30V00028F1)

Запчасти Case CX17B (08-012[00]) - VALVE SECTION, CONTROL VALVE - BOOM (PU30V00028F1) (35) - HYDRAULIC SYSTEMS

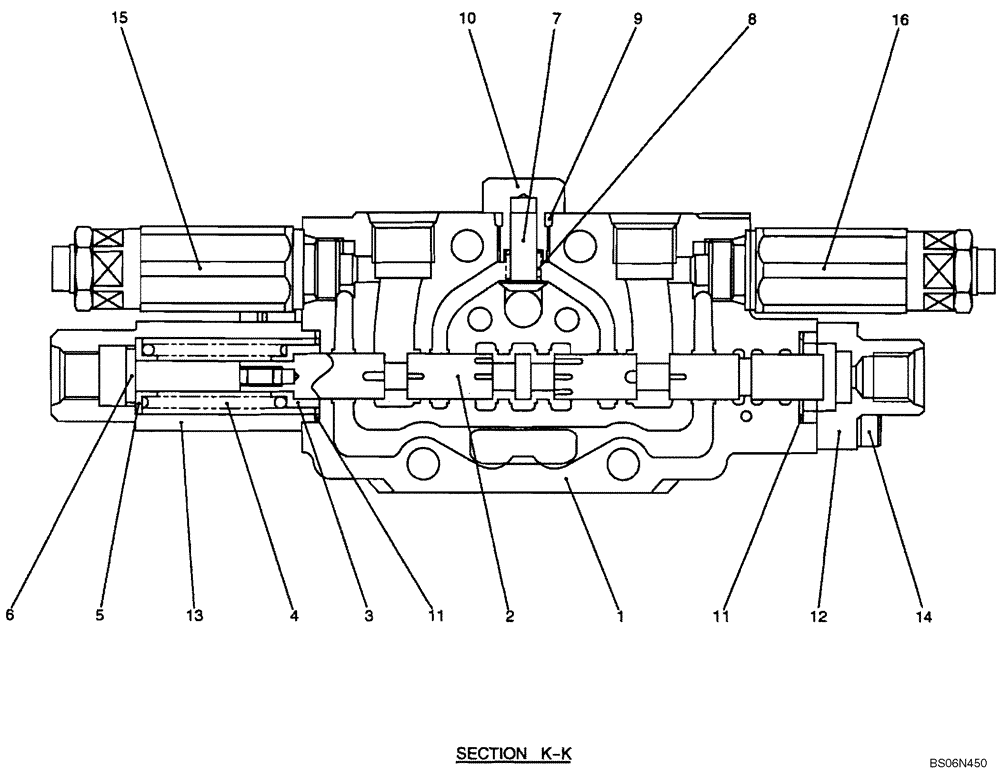

Схема запчастей Case CX17B - (08-012[00]) - VALVE SECTION, CONTROL VALVE - BOOM (PU30V00028F1) (35) - HYDRAULIC SYSTEMS
9
11
7
6
2
4
10
12
15
1
3
8
11
13
5
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU30V00028F1

CONTROL VALVE

VALVE ASSY, CONTROL; BOOM SECTION (PU30V00028F1)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING, SEAT

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING, SEAT

1шт.

6

NSS

NOT SOLD SEPARAT

END, SPOOL

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

SCREW

4шт.

15

PM22V00005FF

VALVE

Valve Assy, Overload Relief; See Figure 08-014

1шт.

16

PM22V00005F4

VALVE PRESSURE RELIE

Overload Relief; See Figure 08-014

1шт.

k

PU30V00028R100

KIT

REPAIR KIT; Consists of Items 2x1, 3x1, 4x1, 5x1, 6x1

1шт.
