(03-007[02]) - HYD LINES, BOOM 1.75M - NIBBLER AND BREAKER

Запчасти Case CX17B (03-007[02]) - HYD LINES, BOOM 1.75M - NIBBLER AND BREAKER (35) - HYDRAULIC SYSTEMS

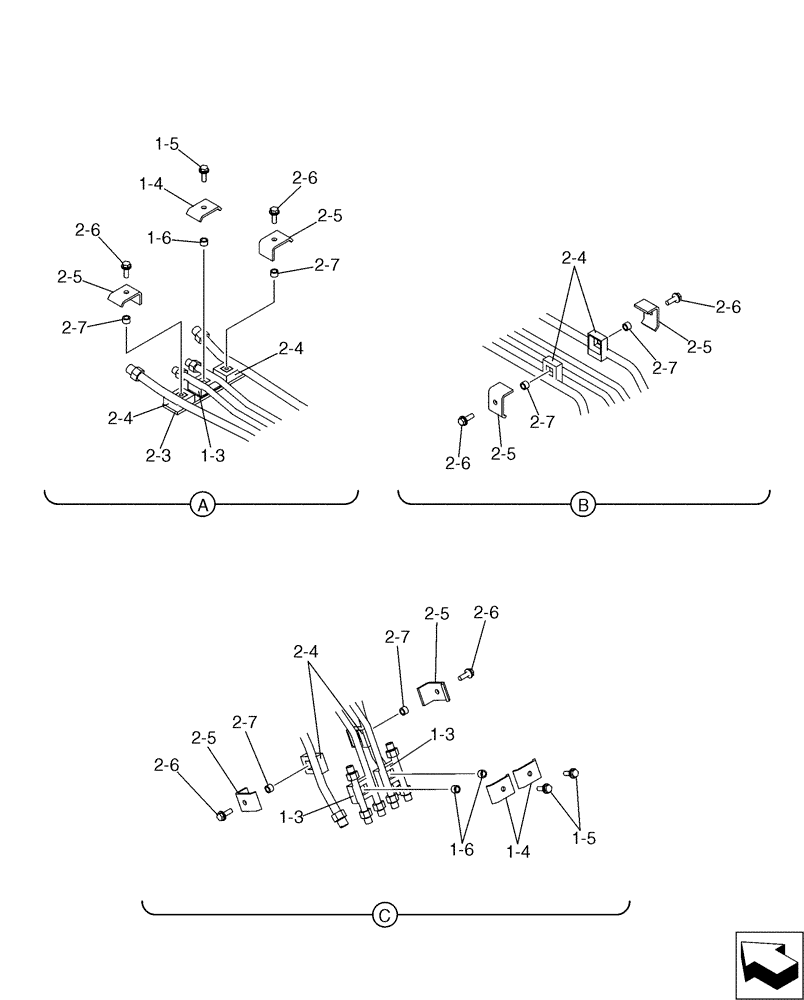

Схема запчастей Case CX17B - (03-007[02]) - HYD LINES, BOOM 1.75M - NIBBLER AND BREAKER (35) - HYDRAULIC SYSTEMS
1-4
2-4
2-5
2-5
2-7
1-3
2-6
2-6
2-5
2-5
1-3
1-5
2-7
1-6
2-5
2-4
2-7
1-4
2-7
2-5
2-6
2-4
2-3
2-4
1-6
2-7
2-7
2-6
1-3
1-5
2-5
2-6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU42H00034F1

Hyd. Lines, Boom 1.75m (Nibbler & Breaker)

1шт.

1-3

PU42H01108P1

CLAMP

3шт.

1-4

PU42H01082P1

CLAMP

3шт.

1-5

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

3шт.

1-6

PU42H01107P1

SPACER

3шт.

2-3

PU42H01105P1

BRACKET

1шт.

2-4

PU42H01103P1

CLAMP

6шт.

2-5

PU42H01104P1

CLAMP

6шт.

2-6

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

6шт.

2-7

PU42H01107P1

SPACER

6шт.

Выбрано товаров: 10
