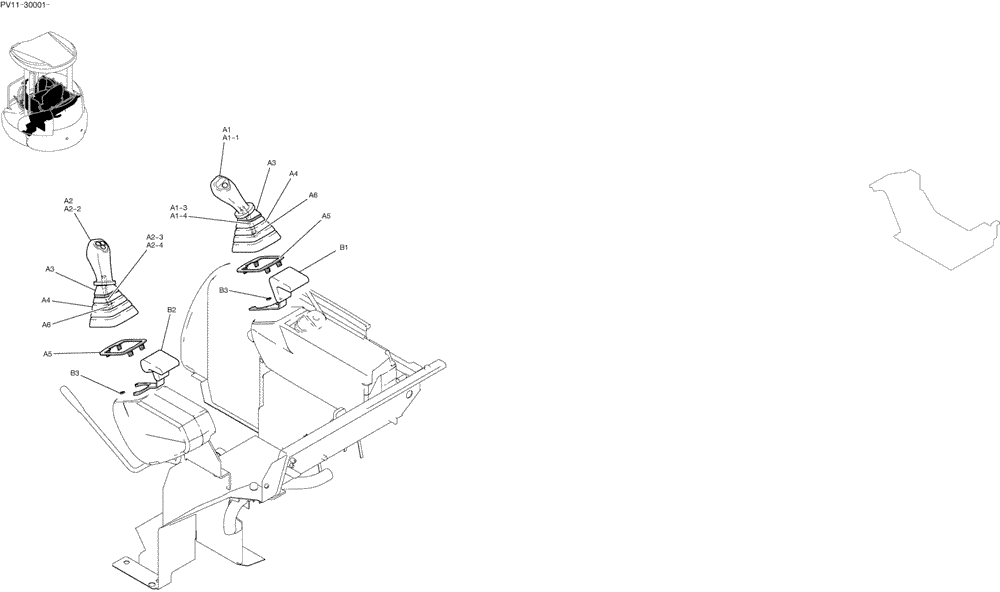

Запчасти Case CX27B (01-028) - GRIP ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

GRIP ASSY (PW03M01719F1)

1шт.

a1

YB03M01003F1

GRIP

1шт.

a1-1

LF03M01005F1

HANDLE

(With 1 Switch)

1шт.

a1-3

YB03M01002P1

LEVER

1шт.

a1-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

1шт.

a2

YB03M01003F2

GRIP

1шт.

a2-2

LF03M01005F3

HANDLE

(With 3 Switches)

1шт.

a2-3

YB03M01002P1

LEVER

1шт.

a2-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

1шт.

a3

LF03M01004P1

BOOT

2шт.

a4

LF03M01008P1

BELLOWS

2шт.

a5

YT03M01051P2

PLATE

2шт.

a6

ZN18C14011

NUT

2шт.

.

PW03M01718F1

SUPPORT

SUPPORT ASSY

1шт.

b1

PW03M01745P1

SUPPORT

1шт.

b2

PW03M01746P1

SUPPORT

1шт.

b3

PV03M01135P1

SPACER

2шт.
