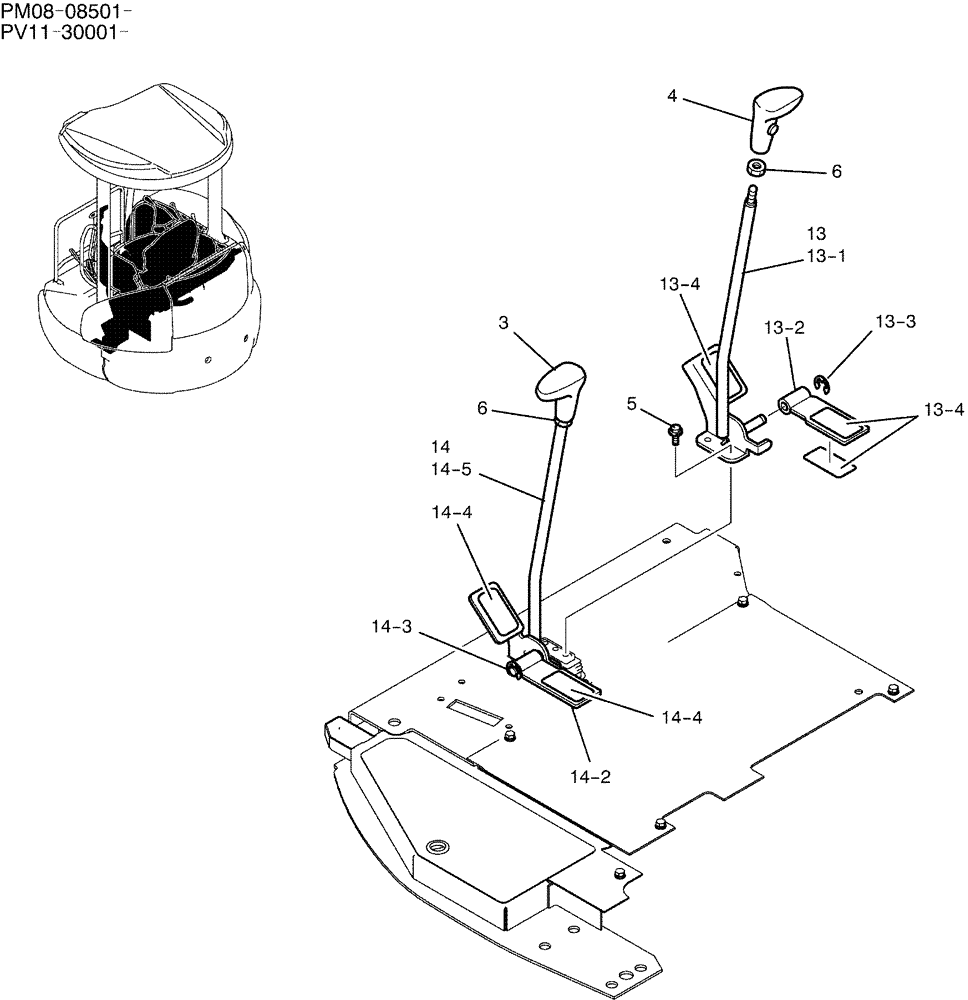

Запчасти Case CX27B (01-032) - LEVER ASSY, CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

LEVER ASSY, CONTROL (PM50M00004F3)

1шт.

3

YN03M01040P1

GRIP

1шт.

4

YN03M01286F1

GRIP

1шт.

5

PA21C01133P1

BOLT

4шт.

6

2420Z1232

NUT

2шт.

13

PF50M01025F1

LEVER ASSY.

1шт.

13-1

PF50M01022P1

LEVER

1шт.

13-2

PF55M01007P1

PEDAL

1шт.

13-3

ZR36X01200

RING

1шт.

13-4

PF55M01006P1

SEAT

3шт.

14

PF50M01025F2

LEVER ASSY.

1шт.

14-2

PF55M01007P1

PEDAL

1шт.

14-3

ZR36X01200

RING

1шт.

14-4

PF55M01006P1

SEAT

3шт.

14-5

PF50M01023P1

LEVER

1шт.
