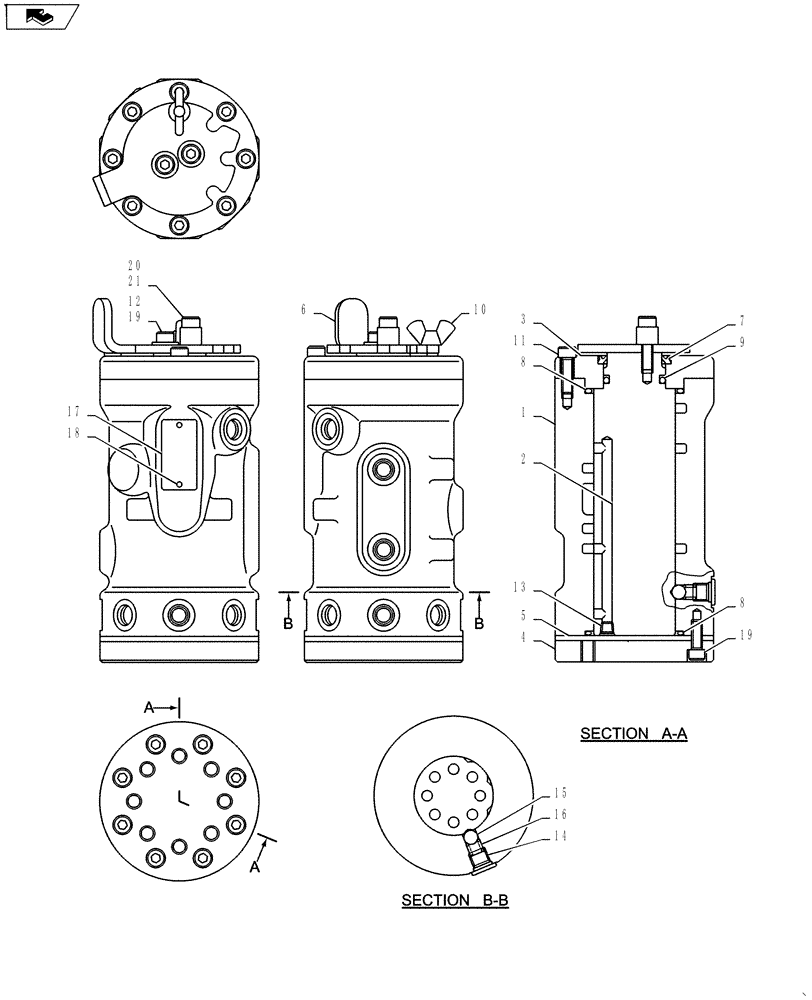

Запчасти Case CX27B ASN (35.359.12) - VALVE, ASSY (J/D MULTI) BTW PV13-33453 - PV13-33807 (35) - HYDRAULIC SYSTEMS

.

Valve Install (J/D Multi) PV64H00019F1

1шт.

.

PX30V00060F1

CONTROL VALVE

Incl 1 - 21, Serial Range: PV13-33453-PV13-33807

1шт.

1

PX30V01037P1

HOUSING

1шт.

2

PX30V01036P1

SPOOL

1шт.

3

PX30V01041P1

COVER

1шт.

4

PX30V01018P1

COVER

1шт.

5

PX30V01022P1

SPACER

Cover

1шт.

6

PX30V01035P1

LEVER

1шт.

7

YN30V01012P1

SEAL

Dust

1шт.

8

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

2шт.

9

ZD11P02800

O-RING

1шт.

10

PX30V01020P1

BOLT

1шт.

11

ZS28C06020

SCREW,Hex Socket Head, M6 x 20mm

2шт.

12

ZW16P06000

WASHER

1шт.

13

PX30V01029P1

PLUG

5шт.

14

YN30V01027P1

PLUG

1шт.

15

YN30V01015P1

BALL

1шт.

16

YN30V01028P1

SPRING

1шт.

17

NSS

NOT SOLD SEPARAT

S/N Nameplate

1шт.

18

2420Z1036D3

CLEVIS

2шт.

19

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

15шт.

20

PX30V01032P1

SPACER

1шт.

21

ZS28C06025

SCREW,Hex Socket Head, M6 x 25mm

Cap

1шт.

PX30V00060R200

REPAIR KIT

Consists Of Item: 3(1), 6(1), 7(1), 8(1), 9(1), 10(1), 12(1), 19(1), 20(1), 21(1)

1шт.
