(35.359.15) - SOLENOID VALVE ASSY (NIBBLER AND BREAKER)

Запчасти Case CX27B ASN (35.359.15) - SOLENOID VALVE ASSY (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

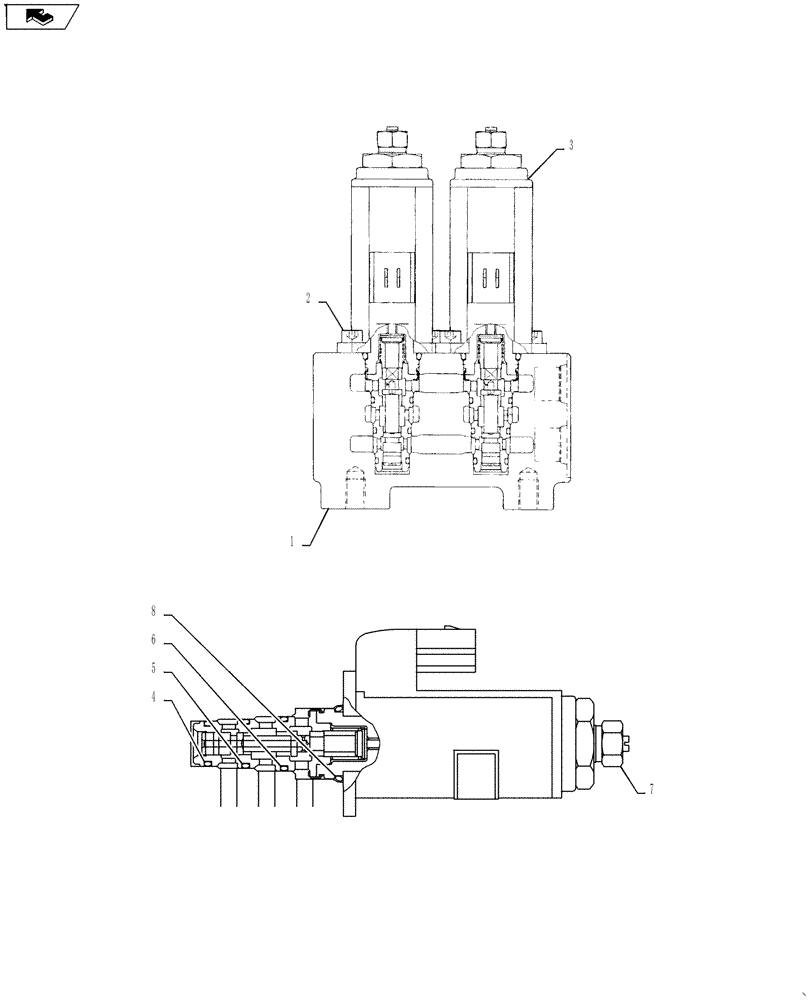

Схема запчастей Case CX27B ASN - (35.359.15) - SOLENOID VALVE ASSY (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS
1
home
6
5
4
2
3
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

PW35V00002F1

SOLENOID VALVE

Assembly (Nibbler And Breaker) Incl 1 - 8

1шт.

1

PW35V00002S101

BODY

1шт.

2

YN35V00047S171

SCREW,Hex Socket Head, M5 x 12mm

Cap

4шт.

3

PW35V00003F1

SOLENOID VALVE

Solenoid

2шт.

4

YN35V00004S361

O-RING

1шт.

5

YN35V00004S362

O-RING

1шт.

6

YN35V00004S363

O-RING

1шт.

7

YN35V00018S802

NUT

1шт.

8

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.
