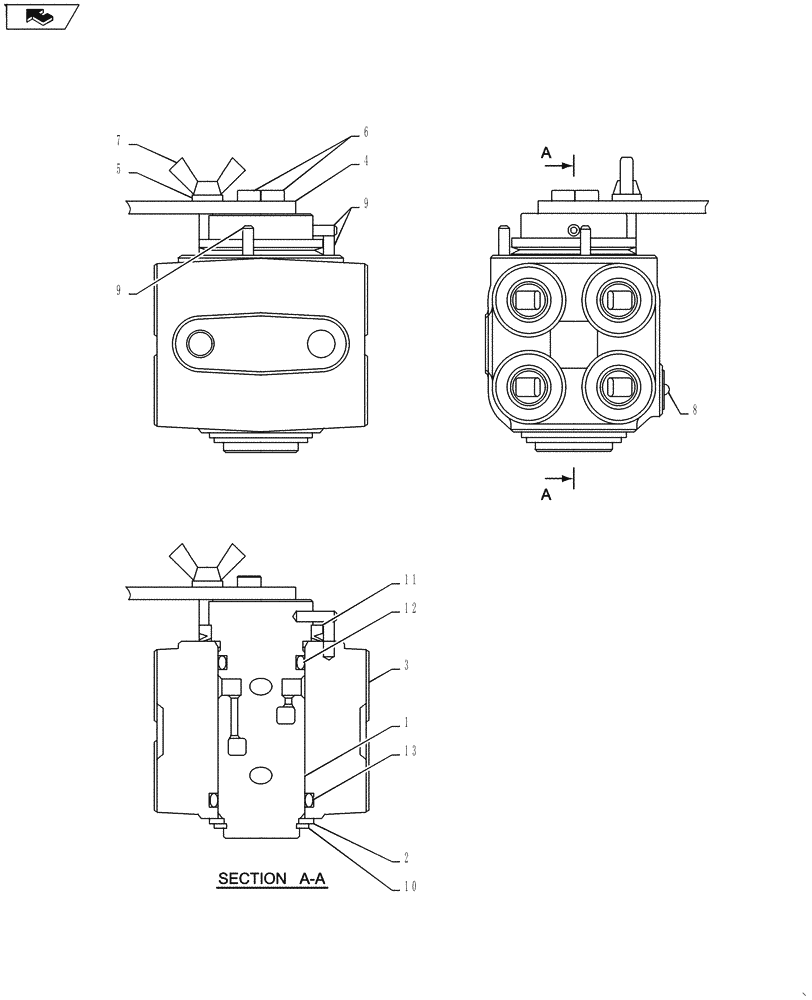

Запчасти Case CX27B ASN (35.359.17) - SELECTOR, VALVE, ASSY (BHL MULTI) ASN PV13-33808 (35) - HYDRAULIC SYSTEMS

.

(BHL Multi) Valve Install PY64H00115F1

1шт.

PY30V00065F1

VALVE

Assembly, Selector, BHL Multi, Incl 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft PY30V00065S002

1шт.

2

YN30V00115S006

WASHER

1шт.

3

NSS

NOT SOLD SEPARAT

Housing PY30V00065S004

1шт.

4

PY30V00065S005

LEVER

1шт.

5

PY30V00065S006

WASHER

1шт.

6

YN30V00115S008

SCREW

2шт.

7

YN30V00115S009

BOLT

1шт.

8

YN30V00080S023

SCREW

2шт.

9

YN30V00115S011

PIN

Spring

3шт.

10

PY30V00065S012

RING

1шт.

11

YN30V00115S013

SEAL

Dust

1шт.

12

ZD11P02600

O-RING

1шт.

13

YN30V00115S015

O-RING

1шт.
