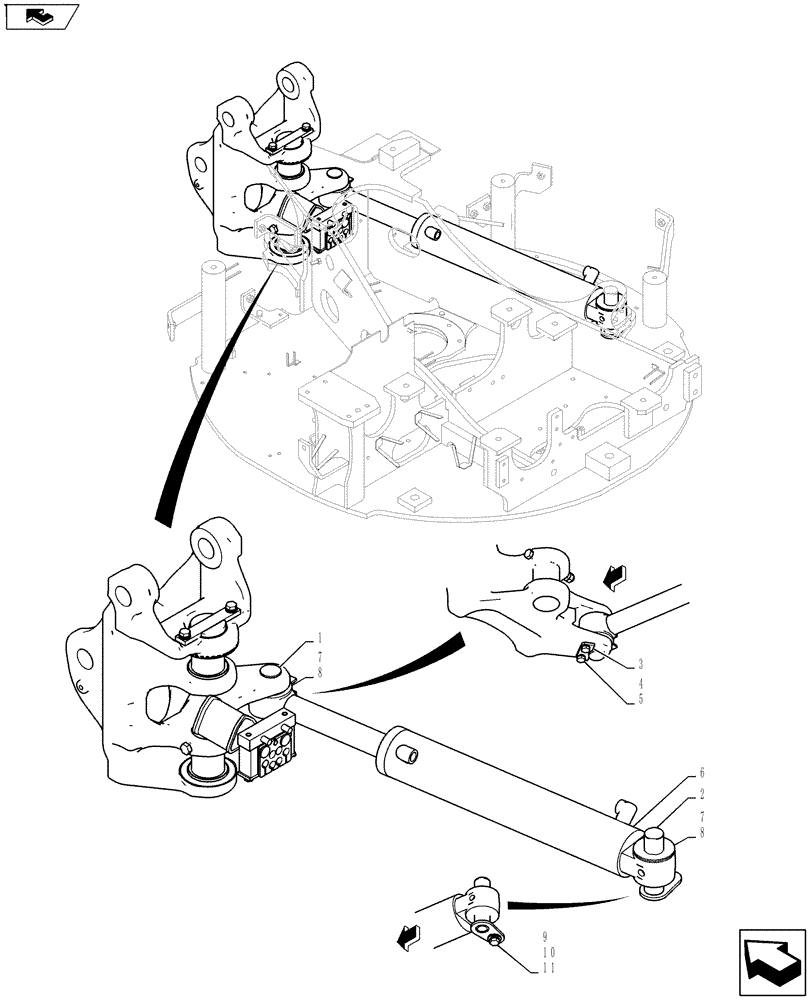

Запчасти Case CX27B ASN (35.528.01) - CYLINDER INSTALL (35) - HYDRAULIC SYSTEMS

Cylinder Install PM02B00162F1

1шт.

1

PM02B01388P1

PIN

1шт.

2

PM02B01389P1

PIN,35mm OD x 124mm L

1шт.

3

PM02B01220P1

PLATE

1шт.

4

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

2шт.

5

ZW26X10000

LOCK WASHER

2шт.

6

PM01V00056F2

CYLINDER

Swing

1шт.

7

PR02B01109P1

SHIM,0.5mm Thk

2шт.

8

PR02B01122D1

SHIM,0.9mm Thk

4шт.

9

2418T12345

WASHER

1шт.

10

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

1шт.

11

ZW26X12000

LOCK WASHER

1шт.
