(35.730.07) - CYLINDER INSTALL (BUCKET)

Запчасти Case CX27B ASN (35.730.07) - CYLINDER INSTALL (BUCKET) (35) - HYDRAULIC SYSTEMS

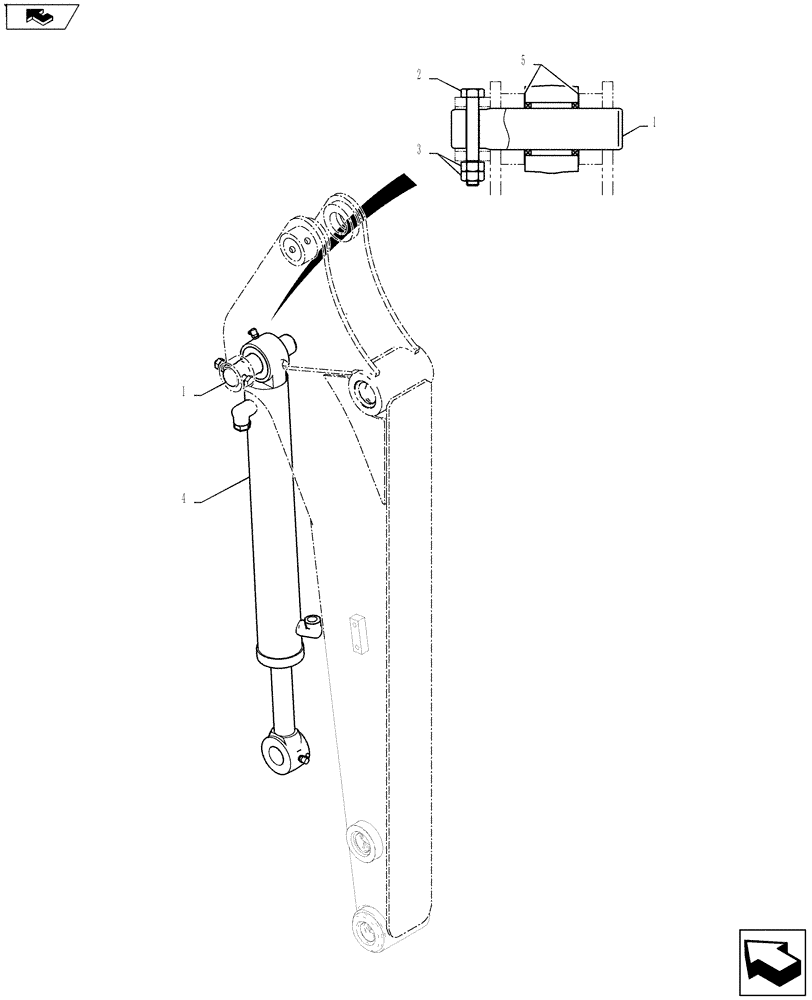

Схема запчастей Case CX27B ASN - (35.730.07) - CYLINDER INSTALL (BUCKET) (35) - HYDRAULIC SYSTEMS
5
home
3
1
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cylinder Install (Bucket) PV12B00147F1

1шт.

.

Optional Cylinder Install (Bucket) PV12B00159F1

1шт.

1

PM12B01348P1

PIN,35mm OD x 145mm L

1шт.

2

HS18C10075G2

SCREW

Cap

1шт.

3

ZN18C10008

NUT

2шт.

4

PV01V00074F1

HYDRAULIC CYLINDER

Assembly W/O Head Cover, Bucket (See Cylinder Breakdown for Difference)

1шт.

4

PV01V00076F1

HYDRAULIC CYLINDER

Optional Assembly W Head Cover, Bucket (See Cylinder Breakdown for Difference)

1шт.

5

PR02B01109P1

SHIM,0.5mm Thk

2шт.
