(37.140.02) - COUNTERWEIGHT INSTALL (GAIN)

Запчасти Case CX27B ASN (37.140.02) - COUNTERWEIGHT INSTALL (GAIN) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

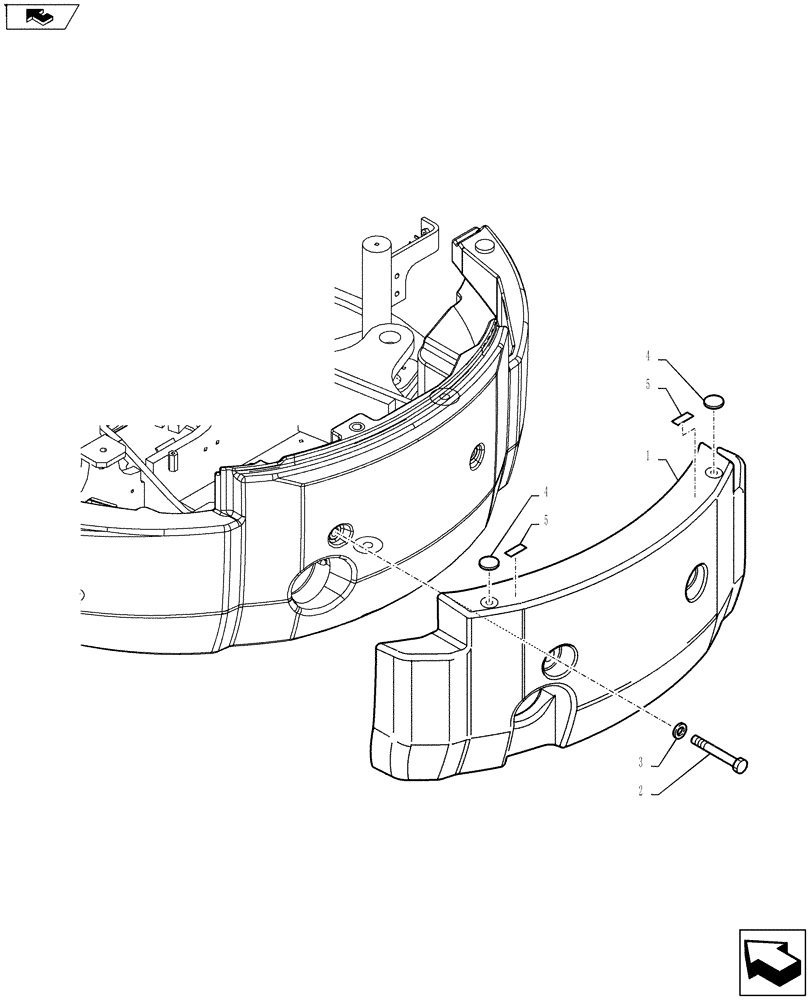

Схема запчастей Case CX27B ASN - (37.140.02) - COUNTERWEIGHT INSTALL (GAIN) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
4
3
home
4
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Counter Weight Install (Gain) PM60C00023F2

1шт.

1

PM60C00022P1

COUNTERWEIGHT

1шт.

2

HS18C20110G1

SCREW

Cap

2шт.

3

HY26Y21050G4

WASHER

2шт.

4

LE60C01028P1

PLATE

2шт.

5

YN20T01221P1

DANGER DECAL

2шт.
