(48.130.02) - SHOE, RUBBER PAD

Запчасти Case CX27B ASN (48.130.02) - SHOE, RUBBER PAD (48) - TRACKS & TRACK SUSPENSION

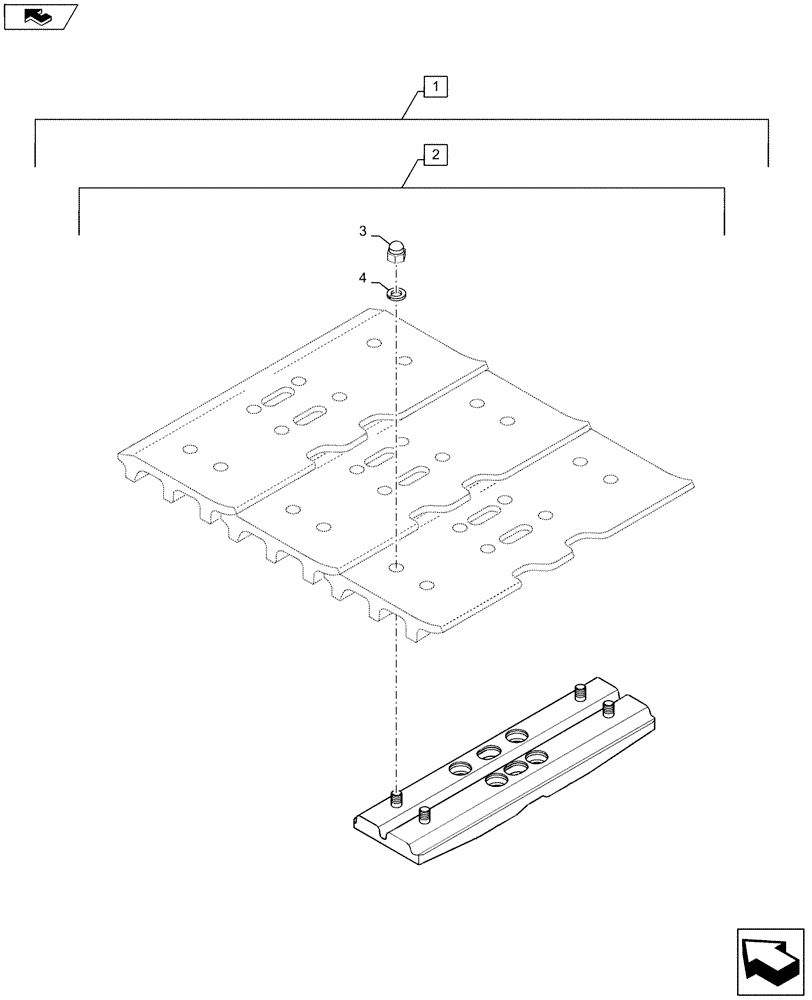

Схема запчастей Case CX27B ASN - (48.130.02) - SHOE, RUBBER PAD (48) - TRACKS & TRACK SUSPENSION
3
2
4
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Steel Shoe With Rubber Pad Install PV60D00012F1

1шт.

1

PV60D00013F1

Incl 2, Serial Range: PV13-33453-PV13-33503

2шт.

1

PV60D00013F2

SHOE

Incl 2, Start Serial: PV13-33504

2шт.

2

PV62D00006F1

SHOE

Rubber Pad, Incl 3 - 4, Serial Range: PV13-33453-PV13-33503

41шт.

2

PV62D00006F2

SHOE

Rubber Pad, Incl 3 - 4, Start Serial: PV13-33504

41шт.

3

PV62D01001P1

NUT

, Serial Range: PV13-33453-PV13-33503

4шт.

3

ZS18C12025

SCREW,Hex, M12 x 25mm

, Start Serial: PV13-33504

4шт.

4

ZW26X12000

LOCK WASHER

4шт.
