(10.101.02) - ENGINE CONTROL ASSY (DECEL)

Запчасти Case CX27B ASN (10.101.02) - ENGINE CONTROL ASSY (DECEL) (10) - ENGINE

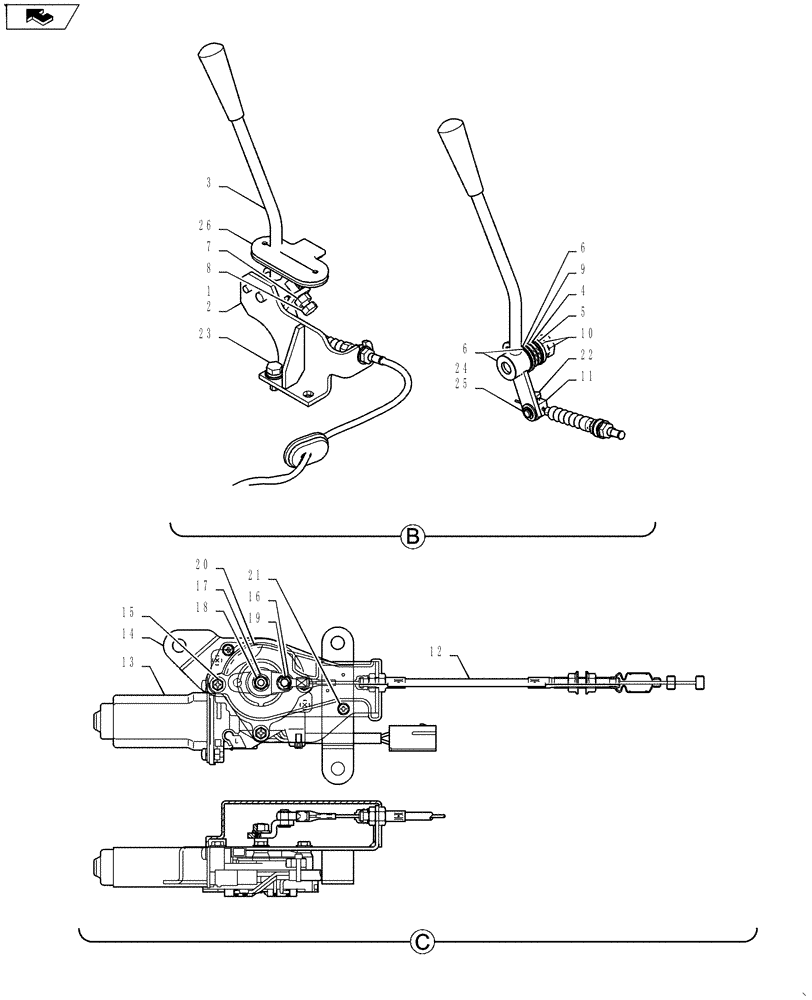

Схема запчастей Case CX27B ASN - (10.101.02) - ENGINE CONTROL ASSY (DECEL) (10) - ENGINE
6
2
24
19
22
12
11
20
9
23
7
1
15
25
5
6
4
13
16
21
17
18
14
8
10
home
3
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Control Assembly, Engine (Decel) PM11M00008F1

1шт.

1

PH51M00011F1

LEVER ASSY.

Throttle

1шт.

2

PH51M01030P1

BRACKET

1шт.

3

PH51M01032P1

LEVER

1шт.

4

R16T0137D2

WASHER

6шт.

5

ZW16H12000

WASHER

1шт.

6

PM51M01026P1

BUSHING,12mm ID x 14mm OD x 7mm L

2шт.

7

ZN18C08007

NUT

1шт.

8

2420T8007D3

CAPSCREW

1шт.

9

PM51M01025P1

PLATE

1шт.

10

ZN17C12007

NUT

2шт.

11

PW11M01109P2

PIN

1шт.

12

PM20S00010S001

CABLE

1шт.

13

PM20S00009S002

GOVERNOR

Motor

1шт.

14

PW20S00012S003

BRACKET

1шт.

15

PM20S00009S004

SCREW

3шт.

16

PM20S00009S005

LEVER ASSY.

1шт.

17

PM20S00009S006

LOCK WASHER

1шт.

18

PM20S00009S007

NUT

1шт.

19

PM20S00009S008

RING

Retaining

1шт.

20

PM20S00009S009

COVER

1шт.

21

PM20S00009S010

SCREW

2шт.

22

ZS18C05010

SCREW,Hex, M5 x 10mm

Cap

1шт.

23

ZM22C08020

BOLT

Sems

8шт.

24

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

25

ZR36X00600

SNAP RING

1шт.

26

PW11M01108P1

GROMMET

1шт.
