(90.115.02) - PLATE GROUP, FLOOR (CANOPY)

Запчасти Case CX27B ASN (90.115.02) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

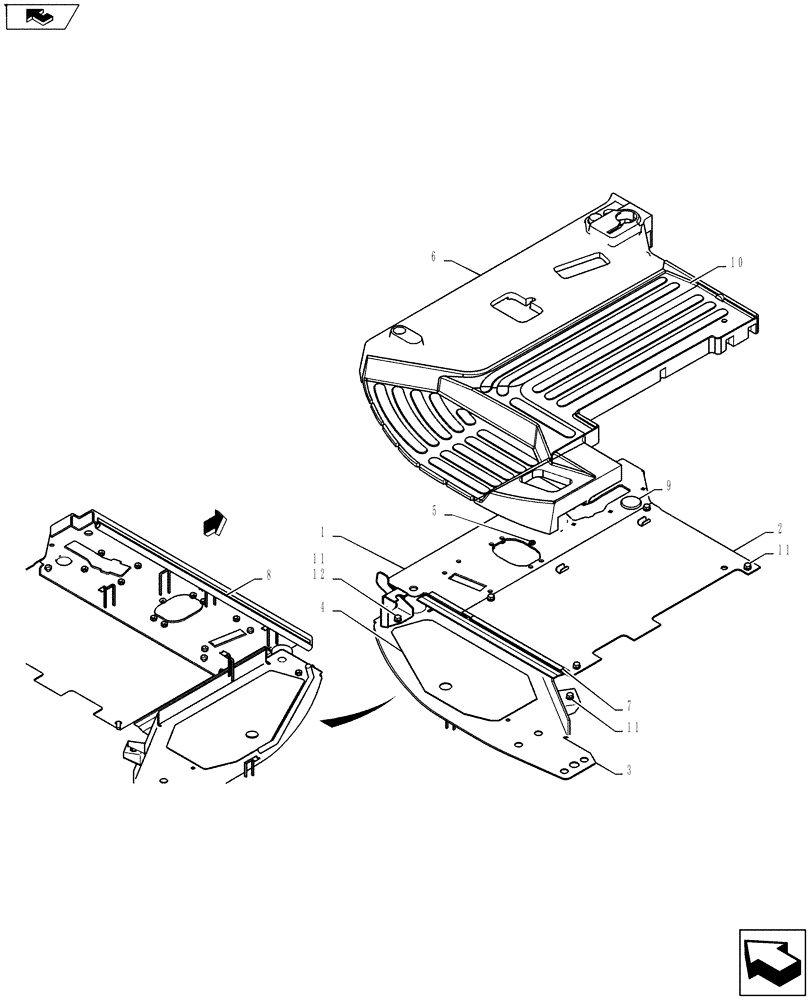

Схема запчастей Case CX27B ASN - (90.115.02) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
12
11
5
6
3
9
7
11
2
1
11
4
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Plate Group, Floor (Canopy) PM03M00063F1

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PW03M01592P1

COVER

1шт.

3

PW03M01860P1

BRACKET

1шт.

4

PW03M01820P1

COVER

1шт.

5

YN03M01159P1

GROMMET

1шт.

6

PM26M00015P1

FLOOR MAT

1шт.

7

PW03M01545P1

RUBBER

1шт.

8

PH21C01136DF

WEATHERSTRIP

1шт.

9

PM03M01357P1

PLUG

1шт.

10

PM26M00022P1

FLOOR MAT

1шт.

11

PM21C01202P1

BOLT

Sems

6шт.

12

PW03M01832P2

PLATE

1шт.
