(90.150.10) - CAB INSTALL (WITH HEAD GUARD)

Запчасти Case CX27B ASN (90.150.10) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

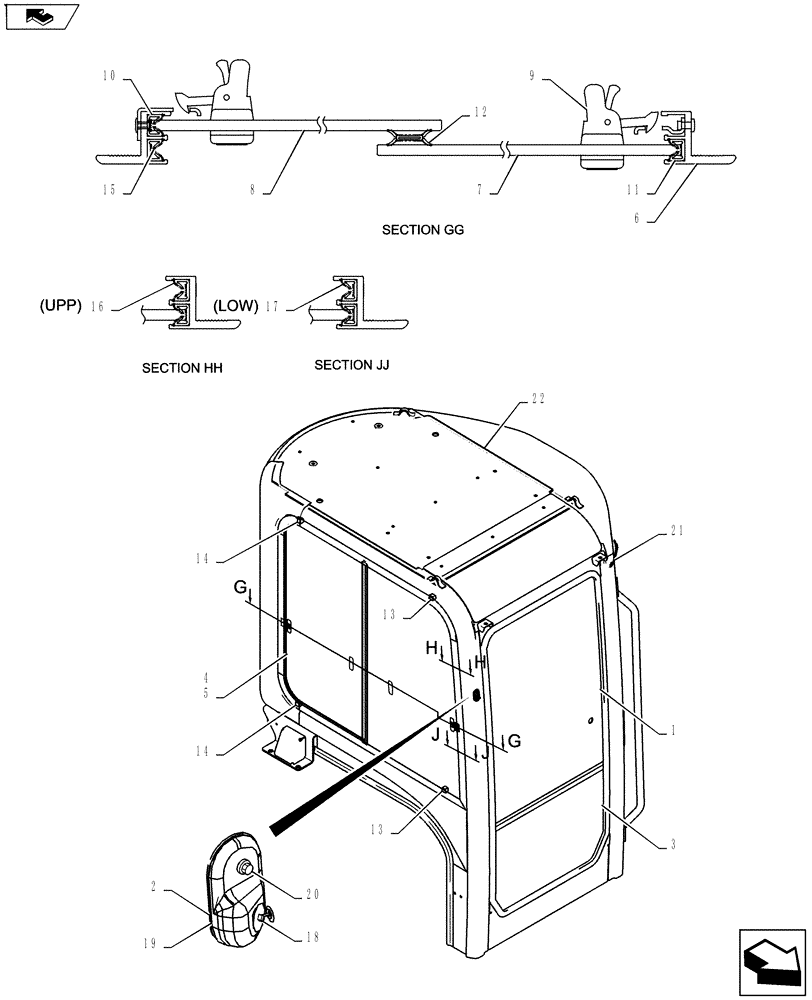

Схема запчастей Case CX27B ASN - (90.150.10) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
20
21
8
18
14
14
3
4
9
12
7
6
11
5
10
13
2
16
1
13
19
17
15
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Cab Install (With Head Guard) PM02C00042F1

1шт.

1

PW50C00007F1

WINDOW FRAME

Assy.

1шт.

2

PM02C01475P1

RUBBER

1шт.

3

PW02C01117P1

GLASS

1шт.

4

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

5

PW02C01114F1

GLASS

Sash Assy.

1шт.

6

PW02C01114S001

FRAME ASSY

1шт.

7

PW02C01224P1

GLASS

1шт.

8

PW02C01225P1

GLASS

1шт.

9

PW02C01114S004

LOCK ASSY

2шт.

10

PW02C01114S005

SEAL

1шт.

11

PW02C01114S006

SEAL

1шт.

12

PW02C01114S007

SEAL

1шт.

13

PW02C01114S008

STOP

2шт.

14

PW02C01114S009

STOP

2шт.

15

PW02C01114S010

SEAL

1шт.

16

PW02C01114S011

SEAL

1шт.

17

PW02C01114S012

SEAL

1шт.

18

PM02C01480P1

NOZZLE

1шт.

19

PM02C01474P1

BASE PLATE

1шт.

20

ZM46C05020

BOLT (STEP)

Sems

1шт.

21

PW02C01162P1

GROMMET

1шт.

22

PW02C01392P1

INSULATION

1шт.
