(35.310.05) - PILOT VALVE ASSY (TRAVEL ALARM)

Запчасти Case CX27B ASN (35.310.05) - PILOT VALVE ASSY (TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS

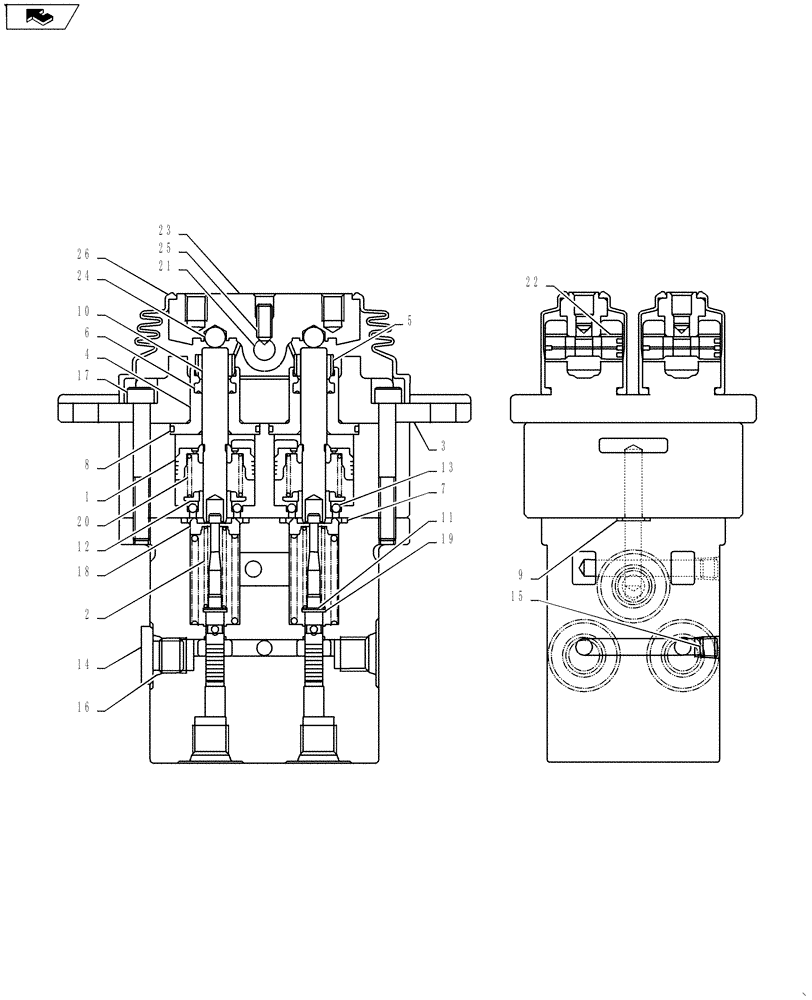

Схема запчастей Case CX27B ASN - (35.310.05) - PILOT VALVE ASSY (TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS
17
5
15
13
8
7
19
10
3
18
1
24
16
home
21
9
6
14
26
11
12
25
4
23
22
2
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

PM30V00019F6

PILOT VALVE

Assembly, Incl 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

Piston PM30V00019S013

4шт.

2

EN30V00045S335

SPRING

4шт.

3

PM30V00019S201

COVER

2шт.

4

PM30V00019S202

PLUG

4шт.

5

PM30V00019S203

CAP

4шт.

6

PM30V00019S210

PACKING

4шт.

7

PM30V00019S211

O-RING

4шт.

8

YT30V00009S212

O-RING

4шт.

9

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

10

EN30V00045S214

ROD

4шт.

11

EN30V00024S217

SHIM

4шт.

12

PM30V00019S218

SPRING SEAT

4шт.

13

2436U625S232

BALL

12шт.

14

YW30V00001S157

PLUG

3шт.

15

2441U722S490

PLUG

2шт.

16

ZD12P01100

O-RING

3шт.

17

PM30V00019S271

CAPSCREW

4шт.

18

EN30V00045S311

SEAT

4шт.

19

EN30V00024S313

WASHER

4шт.

20

PM30V00019S336

SPRING

4шт.

21

NSS

NOT SOLD SEPARAT

Shaft

2шт.

22

EN30V00045S414

BUSHING

Bushing

4шт.

23

NSS

NOT SOLD SEPARAT

Cam

2шт.

24

NSS

NOT SOLD SEPARAT

Ball

4шт.

25

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

26

PM30V00019S501

BOOT

Bellows

2шт.

PM30V00019R100

REPAIR KIT

consists Of Item; 6(4), 7(4), 8(4), 9(2)

1шт.

PM30V00019R300

REPAIR KIT

consists Of Item; 21(1), 23(1), 25(1), 24(2)

1шт.
