(35.322.03) - HYD LINES, UPPER

Запчасти Case CX27B ASN (35.322.03) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS

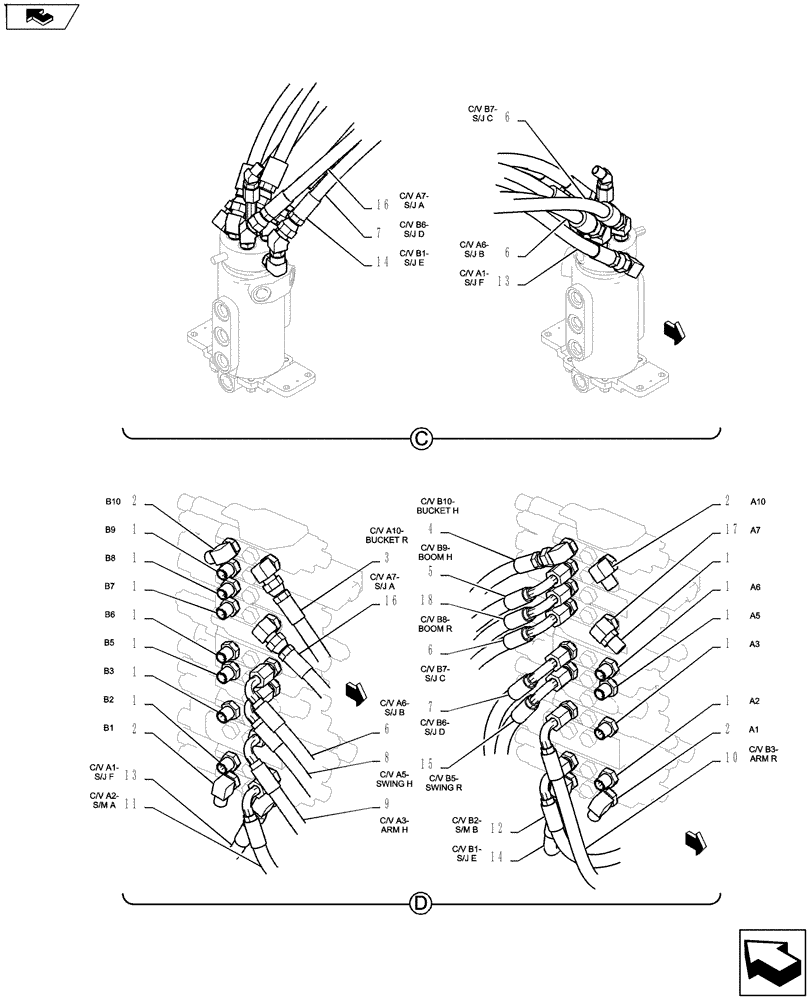

Схема запчастей Case CX27B ASN - (35.322.03) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS
6
10
11
home
13
13
14
1
9
1
18
1
5
2
1
2
14
1
1
1
1
2
2
1
1
1
12
7
6
16
6
16
7
15
3
8
1
4
17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Hyd Lines, Upper PM03H00018F1

1шт.

1

HH25S06006G1

HYD CONNECTOR

12шт.

2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

6шт.

3

PM03H01117D1

HOSE,9.5mm ID x 2760mm L

1шт.

4

PM03H01117D2

HOSE,9.5mm ID x 2800mm L

1шт.

5

PM03H01118D1

HOSE,9.5mm ID x 2370mm L

1шт.

6

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

2шт.

7

HX35L06105DY

HOSE,9.5mm ID x 1050mm L

1шт.

8

HX35L06062DY

HOSE,9.5mm ID x 620mm L

1шт.

9

PM03H01121D1

HOSE,9.5mm ID x 2600mm L

1шт.

10

PM03H01121D2

HOSE,9.5mm ID x 2520mm L

1шт.

11

HX35L06082DY

HOSE,9.5mm ID x 820mm L

1шт.

12

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

13

HX25L06086DY

HOSE,9.5mm ID x 860mm L

1шт.

14

HX25L06080DY

HOSE,9.5mm ID x 800mm L

1шт.

15

HX35L06098DY

HOSE

1шт.

16

HX25L06125DY

HOSE,9.5mm ID x 1250mm L

1шт.

17

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

18

PM03H01118D2

HOSE

1шт.
