(35.353.01) - MOTOR INSTALL, PROPEL

Запчасти Case CX27B ASN (35.353.01) - MOTOR INSTALL, PROPEL (35) - HYDRAULIC SYSTEMS

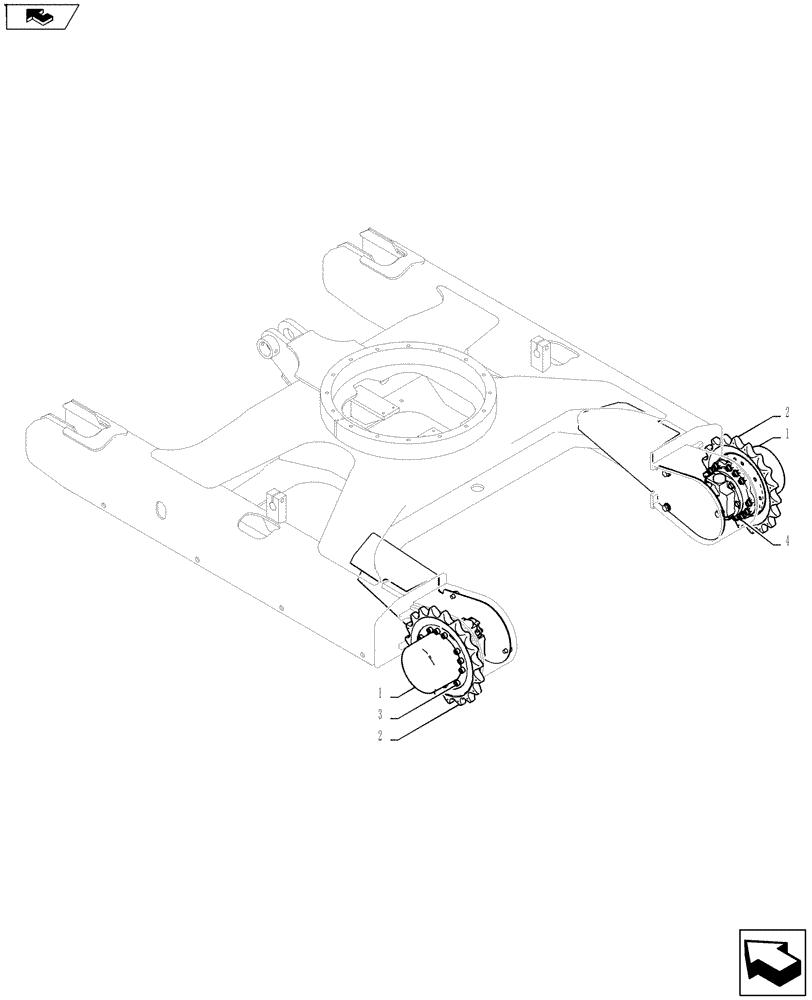

Схема запчастей Case CX27B ASN - (35.353.01) - MOTOR INSTALL, PROPEL (35) - HYDRAULIC SYSTEMS
2
2
1
1
3
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Motor Install, Propel PV53D00008F1

1шт.

1

PM15V00021F1

HYDRAULIC MOTOR,671CC

Assy., Propel (Incl Hyd Motor & Reduction Unit)

2шт.

1

PM15V00021F1R

REMAN-HYD MOTOR

CX27B COMPACT CRAWLER EXCAVATOR TIER 4 (NA) - ASN PV13-33453 & NATN41584

2шт.

1

PM15V00021F1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

PV51D01002P1

SPROCKET,19 teeth, 318mm OD

2шт.

3

ZS28C10025

SCREW,Hex Socket Head, M10 x 25mm

24шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

24шт.

Выбрано товаров: 0
