(35.353.02) - HYD MOTOR, PROPEL

Запчасти Case CX27B ASN (35.353.02) - HYD MOTOR, PROPEL (35) - HYDRAULIC SYSTEMS

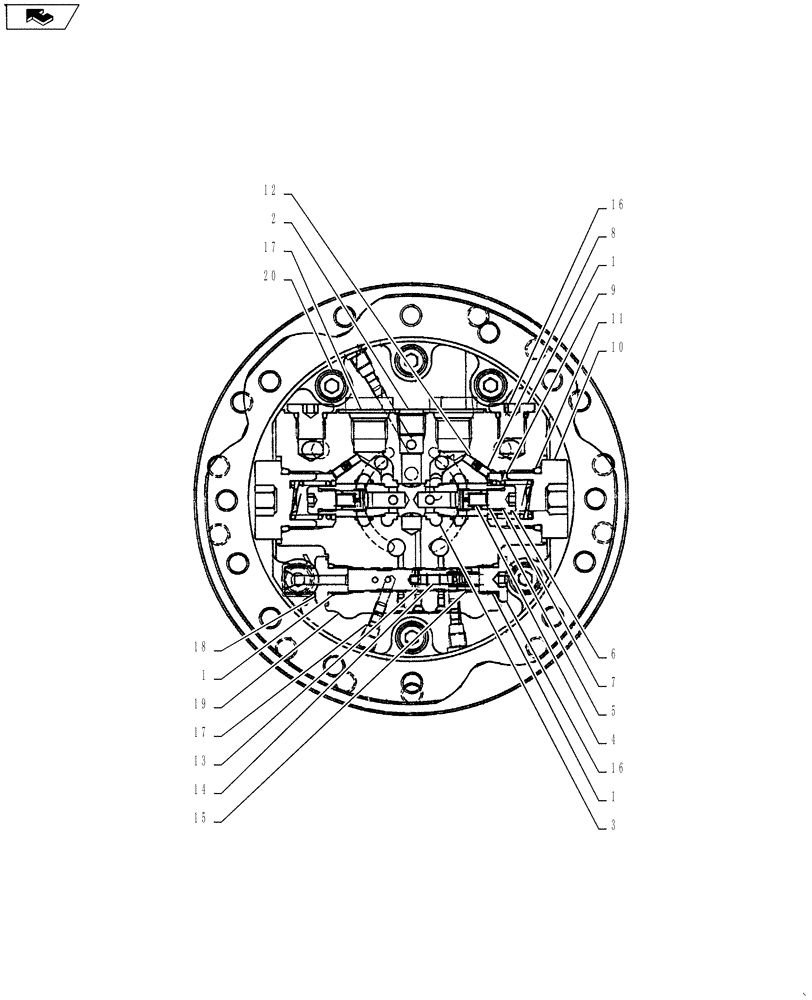

Схема запчастей Case CX27B ASN - (35.353.02) - HYD MOTOR, PROPEL (35) - HYDRAULIC SYSTEMS
1
2
15
16
home
1
11
16
17
1
14
4
18
19
7
17
13
6
3
8
9
20
5
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

PM15V00021F1

HYDRAULIC MOTOR,671CC

Assembly, Propel Incl 1 - 20

1шт.

1

ZD12P01100

O-RING

6шт.

2

NSS

NOT SOLD SEPARAT

Plate

1шт.

3

PM15V00021S058

SPOOL

1шт.

4

PM15V00004S002

GASKET

Valve, Check

2шт.

5

PM15V00004S003

SPRING

Spring

2шт.

6

PU15V00003S314

PLUG

2шт.

7

PM15V00004S005

O-RING

2шт.

8

PM15V00004S025

SEAT

2шт.

9

PM15V00004S026

COVER

Spring

2шт.

10

PM15V00021S065

CAP

2шт.

11

ZD12P02400

O-RING

2шт.

12

PM15V00004S029

ORIFICE

2шт.

13

NSS

NOT SOLD SEPARAT

Spool

1шт.

14

NSS

NOT SOLD SEPARAT

Spool

1шт.

15

PM15V00021S070

SPRING

1шт.

16

PU15V01003S027

PLUG

3шт.

17

2441U802S47

PLUG

3шт.

18

PM15V00021S074

ADAPTER

Union fitting

1шт.

19

PV15V00002S040

ORIFICE

5шт.

20

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

PM15V00021R100

REPAIR KIT

Consists Of Item: 7(2), 11(2), 1(6)

1шт.

PM15V00021R300

REPAIR KIT

Consists Of Item: 2(1), 3(1), 13(1), 14(1), 4(2), 5(2), 6(2), 7(2)

1шт.
