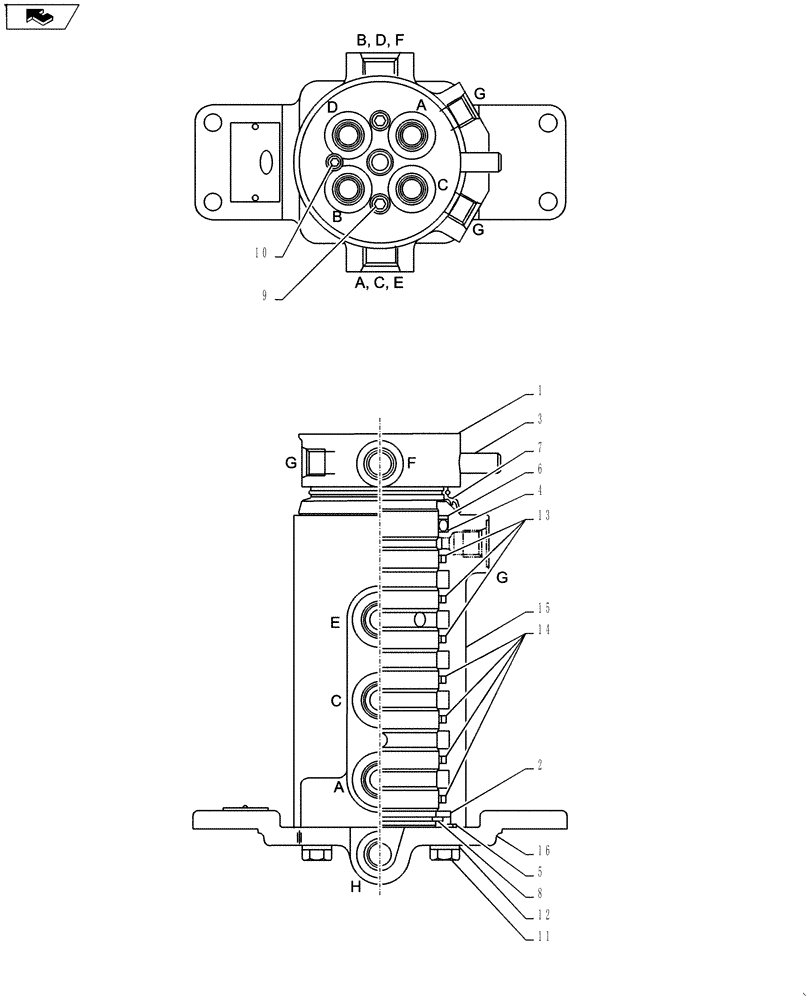

Запчасти Case CX27B ASN (35.354.02) - SWIVEL CONNECTION, ASSY (35) - HYDRAULIC SYSTEMS

.

PM55V00012F2

HYDRAULIC SWIVEL

Assembly, Incl 1 - 16

1шт.

1

PV55V00001S001

SHAFT

1шт.

2

PV55V00001S004

RING

1шт.

3

PV55V00001S005

PIN

1шт.

4

ZD12P06000

O-RING

1шт.

5

PV55V00001S008

O-RING

1шт.

6

ZD75P06000

BACK-UP RING

1шт.

7

PV55V00001S010

SEAL

Dust

1шт.

8

ZR16X05500

RING

Snap

1шт.

9

ZE82T02000

PLUG

2шт.

10

PV55V00001S013

PLUG

1шт.

11

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

4шт.

12

ZW22K08000

LOCK WASHER

4шт.

13

PM55V00012S017

SEAL

3шт.

14

PM55V00012S018

SEAL

4шт.

15

PM55V00012S020

ROTOR

1шт.

16

PM55V00012S021

FLANGE

1шт.
